Adrenal Gland Cortex Layers (Zona Glomerulosa Fasciculata Reticularis)

Analogy: Multi-Level Factory

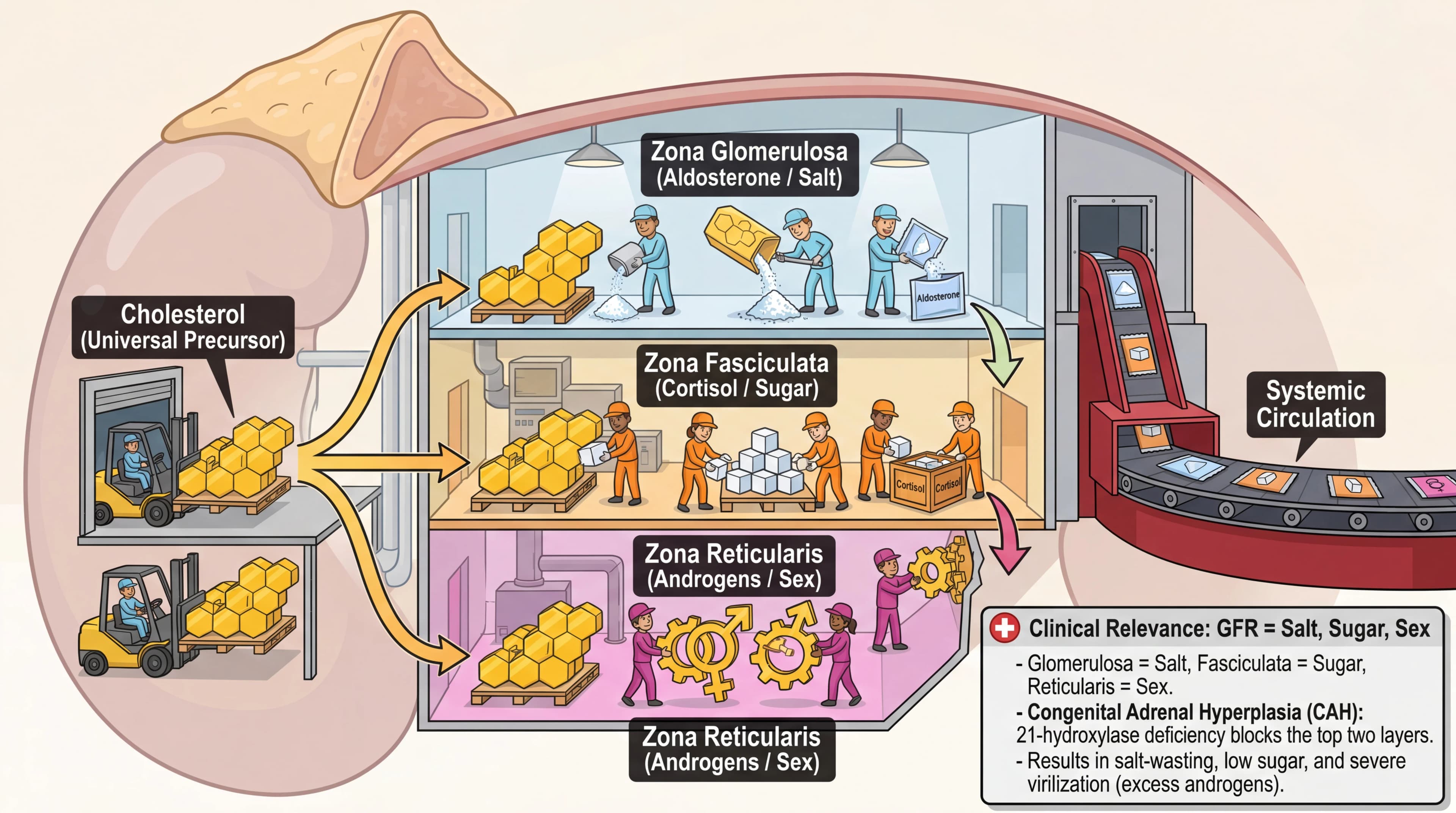

AI-generated illustration for educational purposes

3 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Raw Material Pallets	Cholesterol	Just as cholesterol is the undifferentiated base substrate required for all steroid synthesis, raw material pallets are the universal inputs delivered to every factory floor to be molded into different final products.
Top Floor 'Salt' Processing Unit	Zona Glomerulosa	Just as the glomerulosa is the outermost anatomical layer producing aldosterone to regulate salt, the top floor is the highest level of the factory dedicated exclusively to manufacturing salt-preservation packets.
Middle Floor 'Sugar' Processing Unit	Zona Fasciculata	Just as the fasciculata is the thickest, middle layer producing cortisol (glucocorticoids), the expansive middle floor of the factory takes raw materials and manufactures energy-mobilizing sugar packets.
Lower Floor 'Sex' Processing Unit	Zona Reticularis	Just as the reticularis is the innermost cortical layer producing androgens, the lowest floor of the factory modifies the raw materials into reproductive-support components.
Factory Shipping Conveyor Belt	Systemic Circulation	Just as systemic circulation collects hormones from all cortical layers for body-wide distribution, the shipping conveyor belt gathers finished products from every floor and transports them out of the factory.

The Story

Raw Material Pallets (Cholesterol) — Just as cholesterol is the undifferentiated base substrate required for all steroid synthesis, raw material pallets are the universal inputs delivered to every factory floor to be molded into different final products.. Top Floor 'Salt' Processing Unit (Zona Glomerulosa) — Just as the glomerulosa is the outermost anatomical layer producing aldosterone to regulate salt, the top floor is the highest level of the factory dedicated exclusively to manufacturing salt-preservation packets.. Middle Floor 'Sugar' Processing Unit (Zona Fasciculata) — Just as the fasciculata is the thickest, middle layer producing cortisol (glucocorticoids), the expansive middle floor of the factory takes raw materials and manufactures energy-mobilizing sugar packets.. Lower Floor 'Sex' Processing Unit (Zona Reticularis) — Just as the reticularis is the innermost cortical layer producing androgens, the lowest floor of the factory modifies the raw materials into reproductive-support components.. Factory Shipping Conveyor Belt (Systemic Circulation) — Just as systemic circulation collects hormones from all cortical layers for body-wide distribution, the shipping conveyor belt gathers finished products from every floor and transports them out of the factory..

Cheatsheet

# Adrenal Gland Cortex Layers (Zona Glomerulosa Fasciculata Reticularis)

## Clinical Pearl
If you remember ONE thing, use the mnemonic 'GFR corresponds to Salt, Sugar, Sex' (Glomerulosa=Aldosterone, Fasciculata=Cortisol, Reticularis=Androgens). Clinically, in Congenital Adrenal Hyperplasia (e.g., 21-hydroxylase deficiency), the Glomerulosa and Fasciculata pathways are blocked, shunting all cholesterol precursors into the Reticularis. This results in life-threatening salt-wasting (low aldosterone), hypoglycemia (low cortisol), and severe virilization (excess androgens).

## Process Steps
undefined. Cholesterol is delivered from the bloodstream into the cells of the adrenal cortex to serve as the universal steroid precursor.
undefined. In the outermost Zona Glomerulosa, cholesterol is enzymatically converted into aldosterone under the stimulation of Angiotensin II and extracellular potassium.
undefined. In the middle Zona Fasciculata, cholesterol is converted into cortisol under the stimulation of adrenocorticotropic hormone (ACTH).
undefined. In the innermost Zona Reticularis, cholesterol is converted into weak androgens (DHEA) also under the influence of ACTH.
undefined. Aldosterone, cortisol, and androgens diffuse out of the cortical cells and enter the systemic circulation for transport to target tissues.

## Phonetic & Etymology Clues

## Entity Summary
- **Cholesterol**: The universal lipid precursor molecule required for the biosynthesis of all steroid hormones within the adrenal cortex. → Zona Glomerulosa, Zona Fasciculata, Zona Reticularis
- **Zona Glomerulosa**: The outermost layer of the adrenal cortex that expresses aldosterone synthase to convert cholesterol into mineralocorticoids (aldosterone) for sodium retention. → Cholesterol, Systemic Circulation
- **Zona Fasciculata**: The thick middle layer of the adrenal cortex that utilizes 17-alpha-hydroxylase to convert cholesterol into glucocorticoids (cortisol) for glucose metabolism and stress response. → Cholesterol, Systemic Circulation
- **Zona Reticularis**: The innermost layer of the adrenal cortex that converts cholesterol into weak androgens (DHEA and androstenedione) for secondary sexual characteristics. → Cholesterol, Systemic Circulation
- **Systemic Circulation**: The vascular network, primarily draining via the central adrenal vein, that collects synthesized steroid hormones and distributes them to target organs. → Zona Glomerulosa, Zona Fasciculata, Zona Reticularis

Clinical Pearl

If you remember ONE thing, use the mnemonic 'GFR corresponds to Salt, Sugar, Sex' (Glomerulosa=Aldosterone, Fasciculata=Cortisol, Reticularis=Androgens). Clinically, in Congenital Adrenal Hyperplasia (e.g., 21-hydroxylase deficiency), the Glomerulosa and Fasciculata pathways are blocked, shunting all cholesterol precursors into the Reticularis. This results in life-threatening salt-wasting (low aldosterone), hypoglycemia (low cortisol), and severe virilization (excess androgens).
