Antimicrobial Resistance Mechanisms (ESBLs Carbapenemases MCR-1 Efflux Pumps)

Analogy: Castle Siege Defense

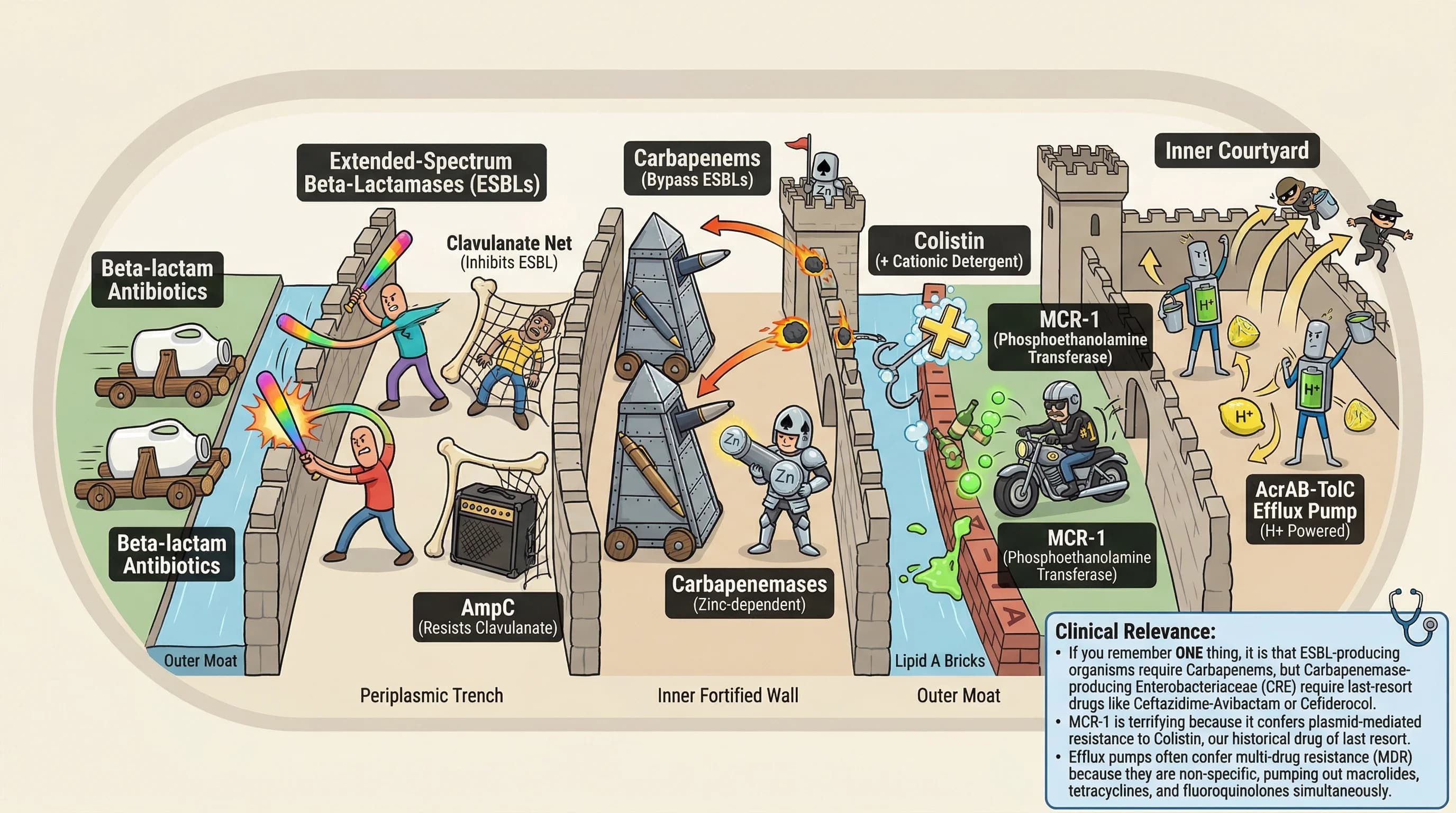

Visual mnemonic for Antimicrobial Resistance Mechanisms (ESBLs Carbapenemases MCR-1 Efflux Pumps) using Castle Siege Defense analogy

AI-generated illustration for educational purposes

Generate your own
1 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual ElementMedical Concept
Standard wooden battering rams shaped like milk jugsBeta-lactam antibiotics
Defenders with stretching arms and rainbow batsExtended-Spectrum Beta-Lactamases (ESBLs)
Armored, metal-plated siege towers shaped like giant pensCarbapenems
Elite cannoneers with Ace of Spades helmets throwing burning coalCarbapenemases
Motorcycle rider (#1) pouring slippery chrome/oil on the outer moatMCR-1 (Phosphoethanolamine transferase)
Tall acrobatic guards actively bailing out infiltrators with bucketsAcrAB-TolC Efflux Pump

The Story

Standard wooden battering rams shaped like milk jugs (Beta-lactam antibiotics) — Just as battering rams attempt to break down the castle wall, beta-lactams attempt to destroy the bacterial cell wall (peptidoglycan).. Defenders with stretching arms and rainbow bats (Extended-Spectrum Beta-Lactamases (ESBLs)) — Just as these defenders smash the wooden battering rams before they hit the wall, ESBLs hydrolyze beta-lactams in the periplasmic space before they reach their targets.. Armored, metal-plated siege towers shaped like giant pens (Carbapenems) — Just as armored towers are immune to the standard defenders' bats, carbapenems resist hydrolysis by standard ESBLs.. Elite cannoneers with Ace of Spades helmets throwing burning coal (Carbapenemases) — Just as specialized cannoneers are required to destroy the heavily armored siege towers, carbapenemases are specific enzymes evolved to hydrolyze carbapenems.. Motorcycle rider (#1) pouring slippery chrome/oil on the outer moat (MCR-1 (Phosphoethanolamine transferase)) — Just as oil prevents grappling hooks from catching the castle wall, MCR-1 modifies the outer membrane charge so colistin (a cationic peptide) cannot bind.. Tall acrobatic guards actively bailing out infiltrators with buckets (AcrAB-TolC Efflux Pump) — Just as guards physically throw spies out of the castle courtyard, efflux pumps actively extrude antibiotics from the intracellular space back into the environment..

Cheatsheet

# Antimicrobial Resistance Mechanisms (ESBLs Carbapenemases MCR-1 Efflux Pumps)

## Clinical Pearl
If you remember ONE thing, it is that ESBL-producing organisms require Carbapenems, but Carbapenemase-producing Enterobacteriaceae (CRE) require last-resort drugs like Ceftazidime-Avibactam or Cefiderocol. MCR-1 is terrifying because it confers plasmid-mediated resistance to Colistin, our historical drug of last resort. Efflux pumps often confer multi-drug resistance (MDR) because they are non-specific, pumping out macrolides, tetracyclines, and fluoroquinolones simultaneously.

## Memory Targets
- ESBLs are inhibited by Clavulanate, but AmpC beta-lactamases are NOT.
- Carbapenemases like NDM-1 are Metallo-beta-lactamases that require Zinc.
- MCR-1 modifies Lipid A with phosphoethanolamine.
- Efflux pumps in Gram-negative bacteria are often powered by the proton motive force (H+ gradient).
- Colistin (Polymyxin E) acts as a cationic detergent targeting the negatively charged outer membrane.

## Process Steps
undefined. Beta-lactam antibiotics approach the bacterial cell envelope to inhibit cell wall synthesis.
undefined. ESBLs intercept and hydrolyze the standard beta-lactams in the periplasmic space.
undefined. Carbapenems bypass the ESBLs but are subsequently hydrolyzed by Carbapenemases.
undefined. Colistin attempts to bind the outer membrane but is repelled by MCR-1 mediated lipid A modification.
undefined. Intracellular antibiotics that bypass the membrane are actively extruded by the AcrAB-TolC Efflux Pump.

## Phonetic & Etymology Clues
ESBL: Extended (stretching arms) + Spectrum (rainbow colors) + Beta (baseball bat) + Lactam (milk jug) = Defenders with stretching arms swinging rainbow bats at milk-jug siege weapons.,Carbapenemase: Carba (coal/carbon) + penem (giant pen) + ase (ace of spades) = Elite defenders with Ace of Spades helmets throwing burning coal at giant pen-shaped siege towers.,MCR-1: M (Motorcycle) + C (Chrome) + R (Rider) + 1 (Number 1 patch) = Motorcycle rider with a #1 patch reinforcing the outer moat.,AcrAB-TolC: Acr (Acrobat) + Tol (Tall) = Tall acrobats rapidly pumping/bailing out invaders.

## Entity Summary
- **Beta-lactam antibiotics**: Antibiotics that target penicillin-binding proteins to inhibit bacterial cell wall synthesis. → Hydrolyzed by Extended-Spectrum Beta-Lactamases (ESBLs)
- **Extended-Spectrum Beta-Lactamases (ESBLs)**: Enzymes produced by bacteria that hydrolyze the beta-lactam ring of penicillins, cephalosporins, and monobactams. → Hydrolyzes Beta-lactam antibiotics, Bypassed by Carbapenems
- **Carbapenems**: Broad-spectrum beta-lactam antibiotics that are highly resistant to hydrolysis by most beta-lactamases, including ESBLs. → Bypasses Extended-Spectrum Beta-Lactamases (ESBLs), Hydrolyzed by Carbapenemases
- **Carbapenemases**: Specialized beta-lactamases (e.g., KPC, NDM) capable of hydrolyzing carbapenems, rendering them ineffective. → Hydrolyzes Carbapenems
- **MCR-1 (Phosphoethanolamine transferase)**: An enzyme that adds phosphoethanolamine to lipid A, reducing the negative charge of the outer membrane and conferring resistance to colistin. → Operates independently of beta-lactamases to protect the outer membrane
- **AcrAB-TolC Efflux Pump**: A tripartite efflux system that actively extrudes a wide variety of intracellular antibiotics (e.g., tetracyclines, fluoroquinolones) out of the bacterial cell. → Works synergistically with outer membrane modifications to reduce intracellular drug concentrations

Clinical Pearl

If you remember ONE thing, it is that ESBL-producing organisms require Carbapenems, but Carbapenemase-producing Enterobacteriaceae (CRE) require last-resort drugs like Ceftazidime-Avibactam or Cefiderocol. MCR-1 is terrifying because it confers plasmid-mediated resistance to Colistin, our historical drug of last resort. Efflux pumps often confer multi-drug resistance (MDR) because they are non-specific, pumping out macrolides, tetracyclines, and fluoroquinolones simultaneously.
