Beta-Adrenergic Signaling (Ligand GPCR Gs AC cAMP PKA)
Analogy: Military Base Alert System

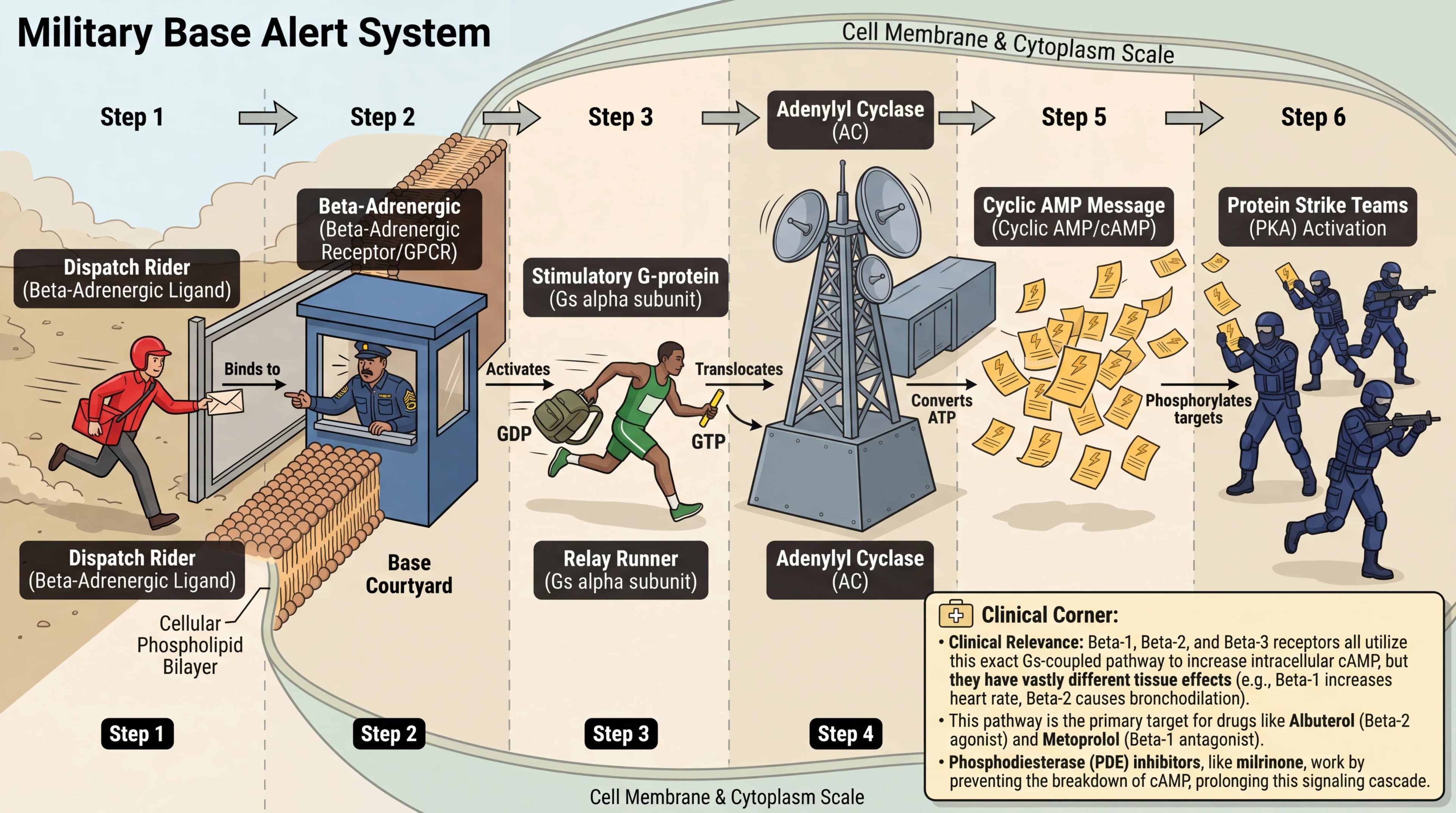

AI-generated illustration for educational purposes
Visual Dictionary
Each visual element in the image maps to a specific medical concept.
| Visual Element | Medical Concept |
|---|---|
| Dispatch Rider | Epinephrine (Beta-Adrenergic Ligand) |
| Guard Shack Commander | Beta-Adrenergic Receptor (GPCR) |
| Relay Runner | Stimulatory G-protein (Gs alpha subunit) |
| Radio Broadcasting Tower | Adenylyl Cyclase (AC) |
| Radio Alert Messages | Cyclic AMP (cAMP) |
| Base Strike Teams | Protein Kinase A (PKA) |
The Story
Dispatch Rider (Epinephrine (Beta-Adrenergic Ligand)) — Just as the ligand carries the initial signal from outside but cannot cross the cell membrane, the dispatch rider brings urgent orders to the base perimeter but does not enter the base.. Guard Shack Commander (Beta-Adrenergic Receptor (GPCR)) — Just as the GPCR spans the membrane to transmit the signal inward without moving, the commander stays at the perimeter wall, receives the external message, and alerts the internal relay.. Relay Runner (Stimulatory G-protein (Gs alpha subunit)) — Just as Gs-alpha physically moves along the inner membrane to activate the next enzyme, the runner physically sprints from the guard shack to the communications center.. Radio Broadcasting Tower (Adenylyl Cyclase (AC)) — Just as AC converts a single activation event into many cAMP molecules (signal amplification), the tower takes one runner's message and broadcasts it to the entire base.. Radio Alert Messages (Cyclic AMP (cAMP)) — Just as cAMP diffuses rapidly through the cytosol as a second messenger, the radio waves flood the base to reach all personnel instantly.. Base Strike Teams (Protein Kinase A (PKA)) — Just as PKA is activated by cAMP to phosphorylate and change the function of specific targets, the strike teams are mobilized by the radio alert to execute specific defensive or offensive actions..
Cheatsheet
# Beta-Adrenergic Signaling (Ligand GPCR Gs AC cAMP PKA) ## Clinical Pearl If you remember ONE thing, remember that Beta-1, Beta-2, and Beta-3 receptors all utilize this exact Gs-coupled pathway to increase intracellular cAMP, but they have vastly different tissue effects (e.g., Beta-1 increases heart rate, Beta-2 causes bronchodilation and vasodilation). This pathway is the primary target for life-saving drugs like Albuterol (Beta-2 agonist for asthma) and Metoprolol (Beta-1 antagonist for hypertension). Additionally, Phosphodiesterase (PDE) inhibitors, like milrinone or theophylline, work by preventing the breakdown of cAMP, thereby artificially prolonging this exact signaling cascade. ## Process Steps undefined. Epinephrine binds to the extracellular domain of the Beta-Adrenergic Receptor. undefined. The receptor undergoes a conformational change, prompting the Gs alpha subunit to exchange GDP for GTP and dissociate. undefined. The active Gs alpha subunit translocates along the inner leaflet of the cell membrane to bind and activate Adenylyl Cyclase. undefined. Adenylyl Cyclase converts intracellular ATP into the second messenger cAMP, massively amplifying the signal. undefined. cAMP molecules diffuse through the cytoplasm and bind to the regulatory subunits of Protein Kinase A. undefined. Catalytic subunits of Protein Kinase A are released to phosphorylate downstream target proteins, executing the physiological response. ## Phonetic & Etymology Clues ## Entity Summary - **Epinephrine (Beta-Adrenergic Ligand)**: The primary first messenger that binds to the extracellular domain of the beta-adrenergic receptor to initiate the signaling cascade. → Beta-Adrenergic Receptor (GPCR) - **Beta-Adrenergic Receptor (GPCR)**: A 7-transmembrane receptor that undergoes a conformational change upon ligand binding, acting as a guanine nucleotide exchange factor (GEF) for the G-protein. → Epinephrine (Beta-Adrenergic Ligand), Stimulatory G-protein (Gs alpha subunit) - **Stimulatory G-protein (Gs alpha subunit)**: Exchanges GDP for GTP upon receptor activation, dissociates from the beta-gamma subunits, and translocates along the inner membrane to activate adenylyl cyclase. → Beta-Adrenergic Receptor (GPCR), Adenylyl Cyclase (AC) - **Adenylyl Cyclase (AC)**: A membrane-bound enzyme that catalyzes the conversion of ATP to cyclic AMP (cAMP) when stimulated by the Gs alpha subunit. → Stimulatory G-protein (Gs alpha subunit), Cyclic AMP (cAMP) - **Cyclic AMP (cAMP)**: A soluble intracellular second messenger that diffuses rapidly through the cytoplasm to amplify the signal and activate downstream effectors. → Adenylyl Cyclase (AC), Protein Kinase A (PKA) - **Protein Kinase A (PKA)**: A cAMP-dependent enzyme that phosphorylates various intracellular target proteins on serine and threonine residues to alter their activity and execute the cellular response. → Cyclic AMP (cAMP)
Clinical Pearl
If you remember ONE thing, remember that Beta-1, Beta-2, and Beta-3 receptors all utilize this exact Gs-coupled pathway to increase intracellular cAMP, but they have vastly different tissue effects (e.g., Beta-1 increases heart rate, Beta-2 causes bronchodilation and vasodilation). This pathway is the primary target for life-saving drugs like Albuterol (Beta-2 agonist for asthma) and Metoprolol (Beta-1 antagonist for hypertension). Additionally, Phosphodiesterase (PDE) inhibitors, like milrinone or theophylline, work by preventing the breakdown of cAMP, thereby artificially prolonging this exact signaling cascade.
