Bile Secretion and Enterohepatic Circulation

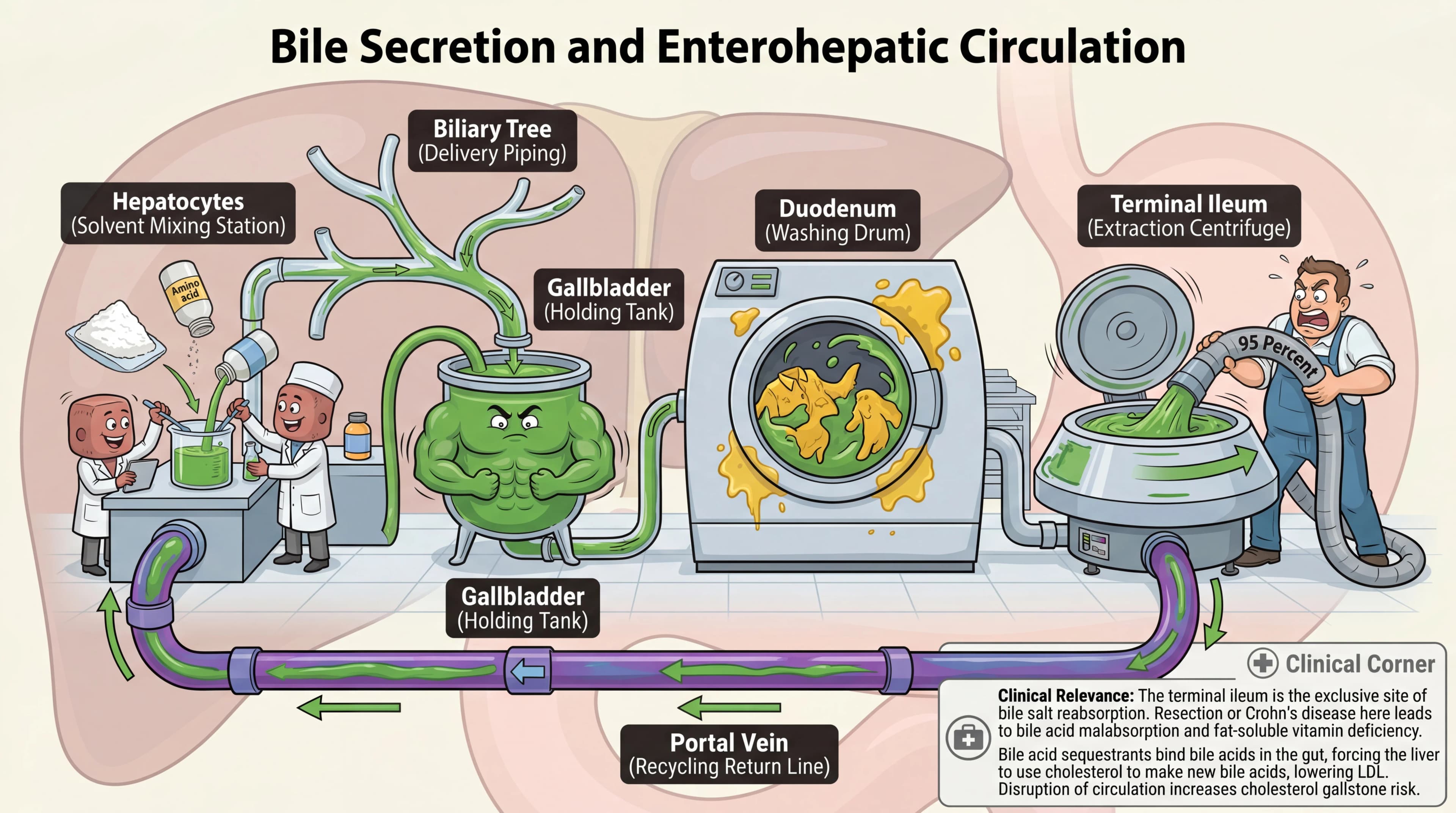

Analogy: Commercial Dry Cleaning

AI-generated illustration for educational purposes

13 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Solvent Mixing Station	Hepatocytes	Just as hepatocytes synthesize and conjugate bile acids from raw cholesterol, the mixing station formulates the active dry-cleaning solvent from base chemical ingredients.
Delivery Piping System	Biliary Tree	Just as the biliary tree channels bile from the liver to storage and the gut, the delivery pipes route the fresh solvent to the holding tanks and washing machines.
Concentrated Solvent Holding Tank	Gallbladder	Just as the gallbladder stores and concentrates bile until a meal is eaten, the holding tank stores and concentrates the solvent until a load of laundry is ready to be processed.
Main Washing Drum	Duodenum	Just as the duodenum is where bile mixes with dietary fats to emulsify them, the washing drum is where the solvent mixes with soiled garments to break down grease and stains.
Solvent Extraction Centrifuge	Terminal Ileum	Just as the terminal ileum actively reabsorbs 95% of bile salts via specialized transporters, the extraction centrifuge actively spins and filters out the reusable solvent from the cleaned clothes.
Recycling Return Line	Portal Vein	Just as the portal vein carries reabsorbed bile salts back to the liver, the return line pumps the recovered solvent back to the mixing station for the next cycle.

The Story

Solvent Mixing Station (Hepatocytes) — Just as hepatocytes synthesize and conjugate bile acids from raw cholesterol, the mixing station formulates the active dry-cleaning solvent from base chemical ingredients.. Delivery Piping System (Biliary Tree) — Just as the biliary tree channels bile from the liver to storage and the gut, the delivery pipes route the fresh solvent to the holding tanks and washing machines.. Concentrated Solvent Holding Tank (Gallbladder) — Just as the gallbladder stores and concentrates bile until a meal is eaten, the holding tank stores and concentrates the solvent until a load of laundry is ready to be processed.. Main Washing Drum (Duodenum) — Just as the duodenum is where bile mixes with dietary fats to emulsify them, the washing drum is where the solvent mixes with soiled garments to break down grease and stains.. Solvent Extraction Centrifuge (Terminal Ileum) — Just as the terminal ileum actively reabsorbs 95% of bile salts via specialized transporters, the extraction centrifuge actively spins and filters out the reusable solvent from the cleaned clothes.. Recycling Return Line (Portal Vein) — Just as the portal vein carries reabsorbed bile salts back to the liver, the return line pumps the recovered solvent back to the mixing station for the next cycle..

Cheatsheet

# Bile Secretion and Enterohepatic Circulation

## Clinical Pearl
If you remember ONE thing, remember that the terminal ileum is the exclusive site of active bile salt reabsorption; resection or disease here (like Crohn's disease) leads to bile acid malabsorption, fat-soluble vitamin deficiency, and secretory diarrhea. Clinically, bile acid sequestrants (like cholestyramine) bind bile acids in the gut, preventing their reabsorption and forcing the liver to use up more cholesterol to synthesize new bile acids, thereby lowering serum LDL levels. Additionally, disruption of the enterohepatic circulation increases the risk of cholesterol gallstone formation due to a decreased bile salt-to-cholesterol ratio.

## Process Steps
undefined. Hepatocytes synthesize and conjugate bile acids, secreting them into the biliary tree.
undefined. Bile is transported to the gallbladder for storage and concentration during fasting.
undefined. Upon eating, the gallbladder contracts, releasing bile into the duodenum to emulsify dietary lipids.
undefined. Bile salts travel through the jejunum and reach the terminal ileum, where they are actively reabsorbed.
undefined. The portal vein transports the reabsorbed bile salts back to the hepatocytes, completing the enterohepatic circulation.

## Phonetic & Etymology Clues

## Entity Summary
- **Hepatocytes**: Synthesize primary bile acids from cholesterol and conjugate them with glycine or taurine to form water-soluble bile salts for secretion. → Biliary Tree, Portal Vein
- **Biliary Tree**: A network of ducts that collects bile secreted by hepatocytes and transports it to the gallbladder and duodenum. → Hepatocytes, Gallbladder, Duodenum
- **Gallbladder**: Stores and concentrates bile during fasting states, releasing it upon stimulation by cholecystokinin (CCK) when fats enter the gut. → Biliary Tree, Duodenum
- **Duodenum**: The first segment of the small intestine where bile salts are secreted to emulsify dietary lipids, forming micelles for absorption. → Biliary Tree, Gallbladder, Terminal Ileum
- **Terminal Ileum**: The distal segment of the small intestine containing specialized sodium-dependent bile acid transporters (ASBT) for the active reabsorption of 95% of bile salts. → Duodenum, Portal Vein
- **Portal Vein**: The major vascular conduit that transports reabsorbed bile salts from the intestinal capillary bed back to the liver for reuse. → Terminal Ileum, Hepatocytes

Clinical Pearl

If you remember ONE thing, remember that the terminal ileum is the exclusive site of active bile salt reabsorption; resection or disease here (like Crohn's disease) leads to bile acid malabsorption, fat-soluble vitamin deficiency, and secretory diarrhea. Clinically, bile acid sequestrants (like cholestyramine) bind bile acids in the gut, preventing their reabsorption and forcing the liver to use up more cholesterol to synthesize new bile acids, thereby lowering serum LDL levels. Additionally, disruption of the enterohepatic circulation increases the risk of cholesterol gallstone formation due to a decreased bile salt-to-cholesterol ratio.
