Cardiac Conduction System SA Node AV Node Bundle of His Purkinje Fibers with ECG Correlation

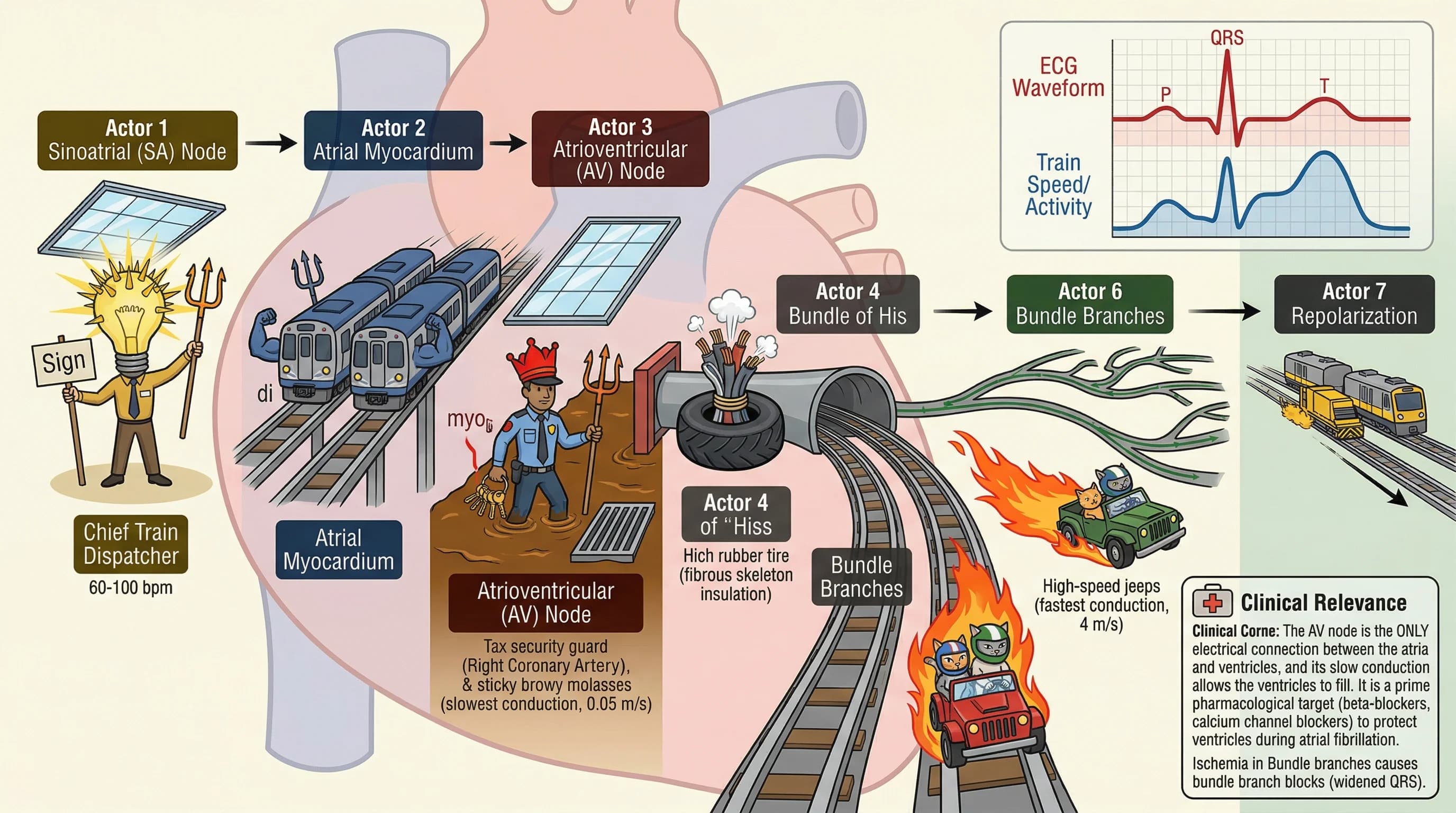

Analogy: Train / Subway Network

AI-generated illustration for educational purposes

1 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Chief Train Dispatcher	Sinoatrial (SA) Node	Just as the SA node possesses automaticity to set the heart's pace without external triggers, the Chief Dispatcher automatically initiates the daily train schedule on a set rhythm.
Upper City Commuter Trains	Atrial Myocardium	These trains respond immediately to the Dispatcher's signal, moving passengers (blood) locally within the upper city before the main express lines activate.
Security Checkpoint / Transfer Hub	Atrioventricular (AV) Node	The checkpoint mandates a physical delay in passenger flow, perfectly mirroring the AV node's conduction delay that ensures atria empty completely before ventricles contract.
Insulated Express Tunnel	Bundle of His	It serves as the single, exclusive pathway through an impenetrable bedrock barrier, just as the Bundle of His is the sole electrical conduit through the heart's insulating fibrous skeleton.
Bifurcating Express Tracks	Bundle Branches	The main tunnel splits into two parallel high-speed tracks running down the center of the city, mirroring the right and left branches traveling down the interventricular septum.
High-Speed Suburban Tram Network	Purkinje Fibers	The tracks branch out extensively into a capillary-like network to deliver signals simultaneously to all outer neighborhoods, ensuring a massive, coordinated city-wide event (ventricular contraction).

The Story

Chief Train Dispatcher (Sinoatrial (SA) Node) — Just as the SA node possesses automaticity to set the heart's pace without external triggers, the Chief Dispatcher automatically initiates the daily train schedule on a set rhythm.. Upper City Commuter Trains (Atrial Myocardium) — These trains respond immediately to the Dispatcher's signal, moving passengers (blood) locally within the upper city before the main express lines activate.. Security Checkpoint / Transfer Hub (Atrioventricular (AV) Node) — The checkpoint mandates a physical delay in passenger flow, perfectly mirroring the AV node's conduction delay that ensures atria empty completely before ventricles contract.. Insulated Express Tunnel (Bundle of His) — It serves as the single, exclusive pathway through an impenetrable bedrock barrier, just as the Bundle of His is the sole electrical conduit through the heart's insulating fibrous skeleton.. Bifurcating Express Tracks (Bundle Branches) — The main tunnel splits into two parallel high-speed tracks running down the center of the city, mirroring the right and left branches traveling down the interventricular septum.. High-Speed Suburban Tram Network (Purkinje Fibers) — The tracks branch out extensively into a capillary-like network to deliver signals simultaneously to all outer neighborhoods, ensuring a massive, coordinated city-wide event (ventricular contraction)..

Cheatsheet

# Cardiac Conduction System SA Node AV Node Bundle of His Purkinje Fibers with ECG Correlation

## Clinical Pearl
If you remember ONE thing, it is that the AV node is the ONLY electrical connection between the atria and ventricles, and its slow conduction is what allows the ventricles to fill. This makes the AV node a prime pharmacological target (using beta-blockers or calcium channel blockers) to protect the ventricles from beating too fast during atrial fibrillation. Furthermore, ischemia or fibrosis in the Bundle branches leads to bundle branch blocks, seen as widened QRS complexes on an ECG.

## Memory Targets
- The SA Node has an intrinsic pacing rate of 60-100 beats per minute.
- The AV Node has an intrinsic pacing rate of 40-60 beats per minute.
- The AV Node has the slowest conduction velocity in the heart (0.05 m/s).
- Purkinje fibers have the fastest conduction velocity in the heart (4 m/s).
- The cardiac fibrous skeleton electrically insulates the atria from the ventricles.
- The AV Node is supplied by the Right Coronary Artery (RCA) in 90% of people.

## Process Steps
undefined. The SA Node spontaneously depolarizes, initiating the electrical impulse.
undefined. The impulse spreads across the Atrial Myocardium, causing atrial contraction and generating the P wave on the ECG.
undefined. The impulse reaches the AV Node where conduction is significantly slowed, creating the PR segment delay to allow ventricular filling.
undefined. The signal travels rapidly through the Bundle of His and splits into the right and left Bundle Branches down the septum.
undefined. Purkinje Fibers distribute the impulse throughout the ventricular myocardium, causing synchronized contraction and generating the QRS complex.
undefined. The ventricular myocardium repolarizes, preparing for the next cycle and generating the T wave on the ECG.

## Phonetic & Etymology Clues
Sinoatrial: Sign (holding a sign) + Atrium (standing under a glass skylight) = Dispatcher holding a sign under a skylight,Atrioventricular: Atrium (glass skylight) + Vent (metal air vent) = Checkpoint between a skylight and a deep vent,Bundle of His: Bundle (tied package) + Hiss (hissing steam) = A tied bundle of cables hissing with steam,Purkinje: Purr (cat) + Kin (family) + Jeep (driving a jeep) = A family of cats driving high-speed jeeps

## Entity Summary
- **Sinoatrial (SA) Node**: The primary pacemaker of the heart, initiating the electrical impulse that triggers each heartbeat. → Atrial Myocardium, Atrioventricular (AV) Node
- **Atrial Myocardium**: Muscle tissue of the atria that depolarizes and contracts in response to the SA node, generating the P wave on an ECG. → Sinoatrial (SA) Node, Atrioventricular (AV) Node
- **Atrioventricular (AV) Node**: Delays the electrical impulse to allow the ventricles to fill with blood before they contract, corresponding to the PR segment on an ECG. → Atrial Myocardium, Bundle of His
- **Bundle of His**: The only electrical connection between the atria and ventricles, transmitting the impulse through the insulating fibrous skeleton. → Atrioventricular (AV) Node, Bundle Branches
- **Bundle Branches**: Right and left divisions of the Bundle of His that conduct the electrical signal rapidly down the interventricular septum. → Bundle of His, Purkinje Fibers
- **Purkinje Fibers**: A specialized network that rapidly distributes the electrical impulse throughout the ventricular walls, causing synchronized contraction and generating the QRS complex. → Bundle Branches

Clinical Pearl

If you remember ONE thing, it is that the AV node is the ONLY electrical connection between the atria and ventricles, and its slow conduction is what allows the ventricles to fill. This makes the AV node a prime pharmacological target (using beta-blockers or calcium channel blockers) to protect the ventricles from beating too fast during atrial fibrillation. Furthermore, ischemia or fibrosis in the Bundle branches leads to bundle branch blocks, seen as widened QRS complexes on an ECG.
