Cerebrospinal Fluid Circulation

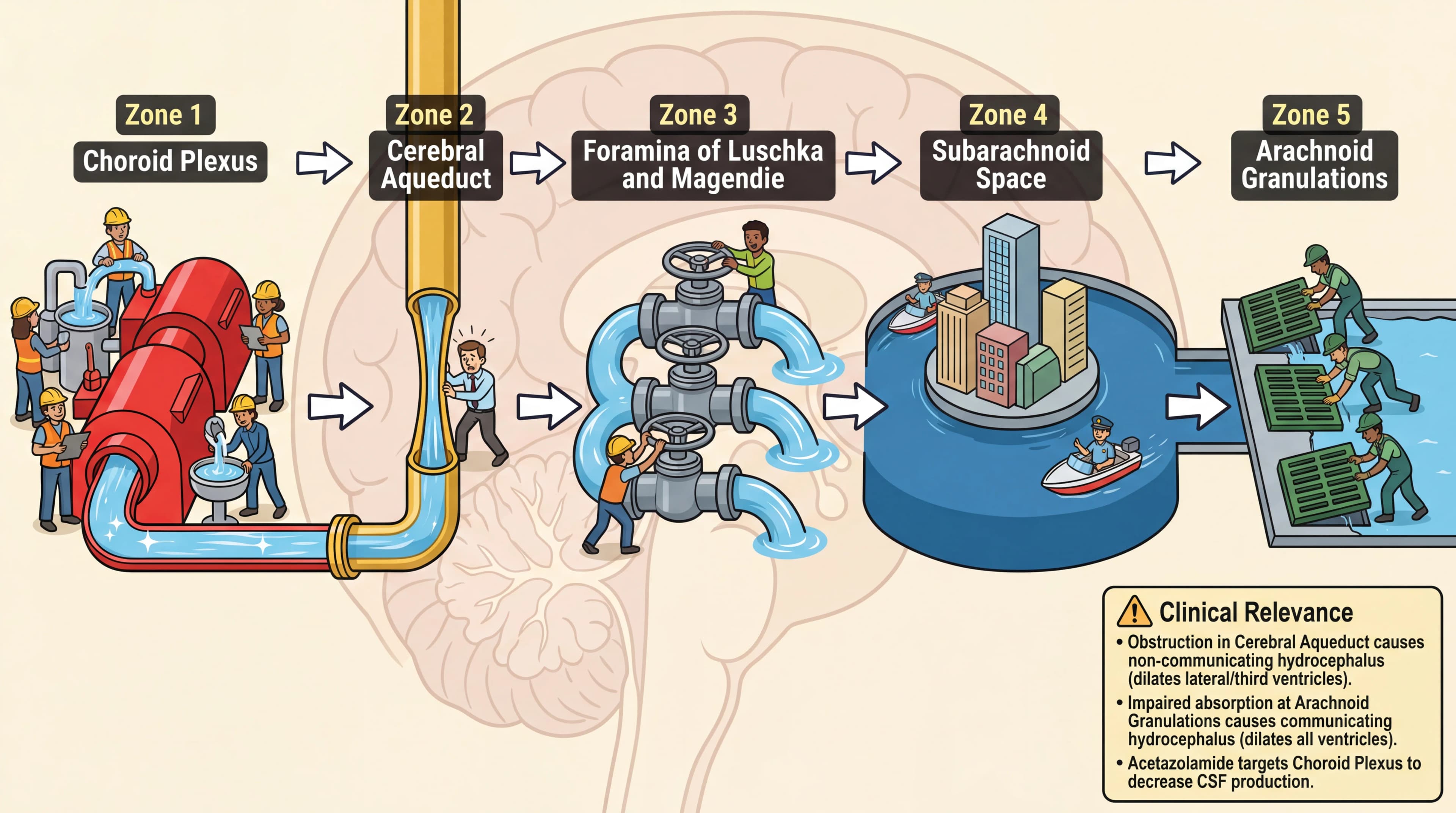

Analogy: City Waterworks / Plumbing System

AI-generated illustration for educational purposes

18 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Main Water Treatment and Pumping Station	Choroid Plexus	Just as a pumping station actively filters raw water and pushes clean water into the city's plumbing, the choroid plexus actively filters blood plasma to secrete clean CSF into the ventricles.
Narrow Choke-point Pipe	Cerebral Aqueduct	Functions as a critical, narrow transit pipe between major reservoirs; if blocked, pressure builds up massively upstream, mirroring non-communicating hydrocephalus.
City Distribution Outflow Valves	Foramina of Luschka and Magendie	These act as the specific exit valves where water leaves the internal plumbing system and flows out into the open city environment.
Surrounding City Moat and Canals	Subarachnoid Space	Provides a fluid-filled buffer that surrounds and protects the city structures, just as the subarachnoid space physically cushions the brain.
One-way Storm Drains	Arachnoid Granulations	They function as pressure-dependent, one-way grates that allow excess water to drain out of the city canals into the main sewer (venous system) without allowing backflow.

The Story

Main Water Treatment and Pumping Station (Choroid Plexus) — Just as a pumping station actively filters raw water and pushes clean water into the city's plumbing, the choroid plexus actively filters blood plasma to secrete clean CSF into the ventricles.. Narrow Choke-point Pipe (Cerebral Aqueduct) — Functions as a critical, narrow transit pipe between major reservoirs; if blocked, pressure builds up massively upstream, mirroring non-communicating hydrocephalus.. City Distribution Outflow Valves (Foramina of Luschka and Magendie) — These act as the specific exit valves where water leaves the internal plumbing system and flows out into the open city environment.. Surrounding City Moat and Canals (Subarachnoid Space) — Provides a fluid-filled buffer that surrounds and protects the city structures, just as the subarachnoid space physically cushions the brain.. One-way Storm Drains (Arachnoid Granulations) — They function as pressure-dependent, one-way grates that allow excess water to drain out of the city canals into the main sewer (venous system) without allowing backflow..

Cheatsheet

# Cerebrospinal Fluid Circulation

## Clinical Pearl
If you remember ONE thing, remember that an obstruction in the Cerebral Aqueduct causes non-communicating hydrocephalus, dilating the lateral and third ventricles while sparing the fourth. Conversely, impaired absorption at the Arachnoid Granulations (e.g., post-meningitis scarring) causes communicating hydrocephalus, dilating all ventricles equally. Pharmacologically, carbonic anhydrase inhibitors like acetazolamide target the Choroid Plexus to decrease CSF production and lower intracranial pressure.

## Process Steps
undefined. CSF is actively secreted by the Choroid Plexus into the lateral and third ventricles.
undefined. CSF flows downward through the narrow Cerebral Aqueduct into the fourth ventricle.
undefined. CSF exits the internal ventricular system via the Foramina of Luschka and Magendie.
undefined. CSF circulates throughout the Subarachnoid Space, providing buoyancy and cushioning to the central nervous system.
undefined. CSF is reabsorbed into the dural venous sinuses via the Arachnoid Granulations.

## Phonetic & Etymology Clues

## Entity Summary
- **Choroid Plexus**: A network of ependymal cells and capillaries that actively secretes cerebrospinal fluid (CSF) from arterial blood into the ventricles. → Cerebral Aqueduct
- **Cerebral Aqueduct**: A narrow channel within the mesencephalon that conducts CSF from the third ventricle down to the fourth ventricle. → Choroid Plexus, Foramina of Luschka and Magendie
- **Foramina of Luschka and Magendie**: The lateral and median apertures of the fourth ventricle that allow CSF to exit the internal ventricular system. → Cerebral Aqueduct, Subarachnoid Space
- **Subarachnoid Space**: The anatomic space between the arachnoid mater and pia mater where CSF circulates to cushion the brain and spinal cord. → Foramina of Luschka and Magendie, Arachnoid Granulations
- **Arachnoid Granulations**: Projections of the arachnoid membrane into the dural venous sinuses that act as one-way valves for the reabsorption of CSF into the venous blood. → Subarachnoid Space

Clinical Pearl

If you remember ONE thing, remember that an obstruction in the Cerebral Aqueduct causes non-communicating hydrocephalus, dilating the lateral and third ventricles while sparing the fourth. Conversely, impaired absorption at the Arachnoid Granulations (e.g., post-meningitis scarring) causes communicating hydrocephalus, dilating all ventricles equally. Pharmacologically, carbonic anhydrase inhibitors like acetazolamide target the Choroid Plexus to decrease CSF production and lower intracranial pressure.
