CRISPR Gene Therapy Casgevy for Sickle Cell Disease

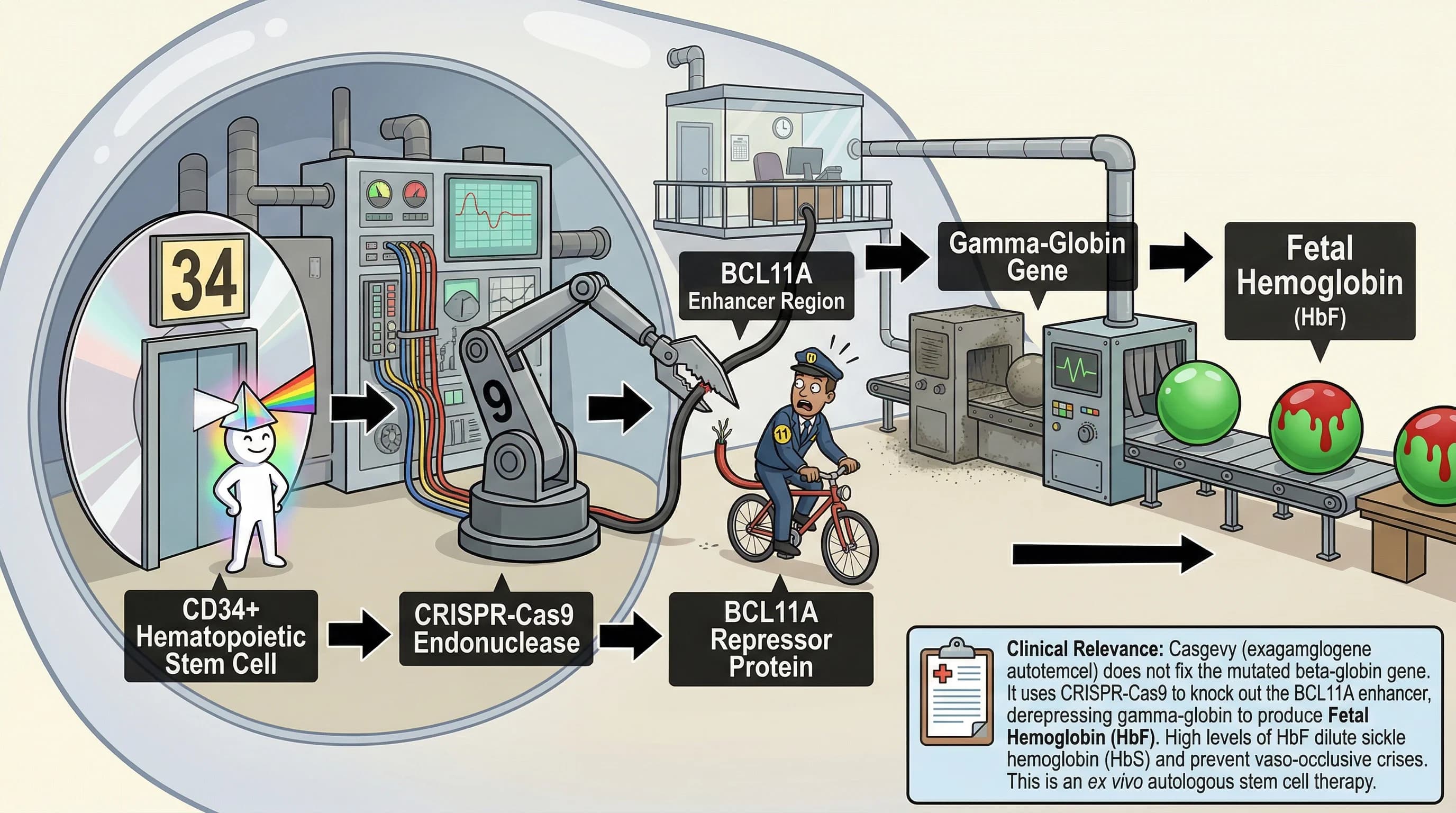

Analogy: Factory / Assembly Line
AI-generated illustration for educational purposes
Visual Dictionary
Each visual element in the image maps to a specific medical concept.
| Visual Element | Medical Concept |
|---|---|
| Compact Disc (CD) shaped factory building with a '34' sign over the door | CD34+ Hematopoietic Stem Cell |
| Crisp, cast-iron robotic cutting arm with a '9' painted on it | CRISPR-Cas9 Endonuclease |
| Main power cable supplying the supervisor's office | BCL11A Enhancer Region |
| Strict supervisor riding an A-frame bicycle (BCL) with an '11' badge | BCL11A Repressor Protein |
| Dormant assembly line producing glowing green globes (Gamma-Globe) | Gamma-Globin Gene |
| Smooth, perfectly round, glowing green globe products | Fetal Hemoglobin (HbF) |
The Story
Compact Disc (CD) shaped factory building with a '34' sign over the door (CD34+ Hematopoietic Stem Cell) — Just as the HSC is the foundational site where all blood cell production occurs, the factory is the main facility housing the assembly lines.. Crisp, cast-iron robotic cutting arm with a '9' painted on it (CRISPR-Cas9 Endonuclease) — The robotic arm uses a blueprint to make a precise cut in the factory's control wiring, mirroring Cas9's targeted double-strand DNA cleavage guided by RNA.. Main power cable supplying the supervisor's office (BCL11A Enhancer Region) — Cutting the power cable stops the supervisor from working, just as editing the enhancer prevents the transcription of the BCL11A gene in erythroid cells.. Strict supervisor riding an A-frame bicycle (BCL) with an '11' badge (BCL11A Repressor Protein) — The supervisor normally patrols the factory floor to shut down the old assembly line; without power to his office, he disappears, allowing the line to run.. Dormant assembly line producing glowing green globes (Gamma-Globe) (Gamma-Globin Gene) — This assembly line is usually shut down by the supervisor, but once he is gone, it reactivates to produce the alternative product components.. Smooth, perfectly round, glowing green globe products (Fetal Hemoglobin (HbF)) — These smooth products roll off the line perfectly and don't jam the shipping trucks, unlike the defective, spiky products that represent sickled hemoglobin..
Cheatsheet
# CRISPR Gene Therapy Casgevy for Sickle Cell Disease ## Clinical Pearl If you remember ONE thing, it is that Casgevy (exagamglogene autotemcel) does NOT fix the mutated beta-globin gene; instead, it uses CRISPR-Cas9 to knock out the BCL11A enhancer, derepressing gamma-globin to produce Fetal Hemoglobin (HbF). High levels of HbF dilute the sickle hemoglobin (HbS) and prevent the polymerization that causes vaso-occlusive crises. This is an ex vivo autologous stem cell therapy, meaning the patient's own CD34+ cells are edited outside the body and reinfused following myeloablative conditioning. ## Process Steps undefined. CD34+ Hematopoietic Stem Cells are harvested from the patient and prepared for ex vivo editing. undefined. CRISPR-Cas9 Endonuclease is introduced into the cells and guided to the erythroid-specific BCL11A Enhancer Region. undefined. Cas9 cleaves the BCL11A Enhancer Region, disrupting its function and preventing the production of the BCL11A Repressor Protein. undefined. The absence of the BCL11A Repressor Protein derepresses the Gamma-Globin Gene. undefined. Gamma-globin production resumes, assembling with alpha-globin to form high levels of Fetal Hemoglobin (HbF), which prevents red blood cell sickling. ## Phonetic & Etymology Clues CD34+ HSC: CD (compact disc) + 34 (number 34) = Factory entrance shaped like a giant compact disc with a 34 sign,CRISPR-Cas9: Crisp (sharp edges) + Cas (cast-iron) + 9 (number 9) = Crisp, cast-iron robotic arm painted with a 9,BCL11A: Bicycle (BCL) + 11 (number 11) + A (A-frame) = Supervisor riding an A-frame bicycle with an 11 badge,Gamma-Globin: Gamma (glowing green/gamma rays) + Globe (spherical) = Assembly line producing glowing green globes ## Entity Summary - **CD34+ Hematopoietic Stem Cell**: Patient's own blood stem cells that are harvested, edited ex vivo, and infused back to produce red blood cells. → CRISPR-Cas9 Endonuclease, Fetal Hemoglobin (HbF) - **CRISPR-Cas9 Endonuclease**: A programmable RNA-guided enzyme that introduces a targeted double-strand break in the DNA. → CD34+ Hematopoietic Stem Cell, BCL11A Enhancer Region - **BCL11A Enhancer Region**: A regulatory DNA sequence in the erythroid lineage that drives the expression of the BCL11A gene. → CRISPR-Cas9 Endonuclease, BCL11A Repressor Protein - **BCL11A Repressor Protein**: A transcription factor that normally binds to the gamma-globin gene promoter to silence fetal hemoglobin production in adults. → BCL11A Enhancer Region, Gamma-Globin Gene - **Gamma-Globin Gene**: The gene (HBG1/HBG2) responsible for producing the gamma-globin subunits of fetal hemoglobin, normally repressed after birth. → BCL11A Repressor Protein, Fetal Hemoglobin (HbF) - **Fetal Hemoglobin (HbF)**: An oxygen-carrying protein composed of two alpha and two gamma chains that does not polymerize (sickle) in hypoxic conditions. → Gamma-Globin Gene, CD34+ Hematopoietic Stem Cell
Clinical Pearl
If you remember ONE thing, it is that Casgevy (exagamglogene autotemcel) does NOT fix the mutated beta-globin gene; instead, it uses CRISPR-Cas9 to knock out the BCL11A enhancer, derepressing gamma-globin to produce Fetal Hemoglobin (HbF). High levels of HbF dilute the sickle hemoglobin (HbS) and prevent the polymerization that causes vaso-occlusive crises. This is an ex vivo autologous stem cell therapy, meaning the patient's own CD34+ cells are edited outside the body and reinfused following myeloablative conditioning.
