immunology8.7

Cytokine Families (IL-1 IL-6 TNF-alpha IFN-gamma IL-10)

Analogy: Emergency Response / Fire Department

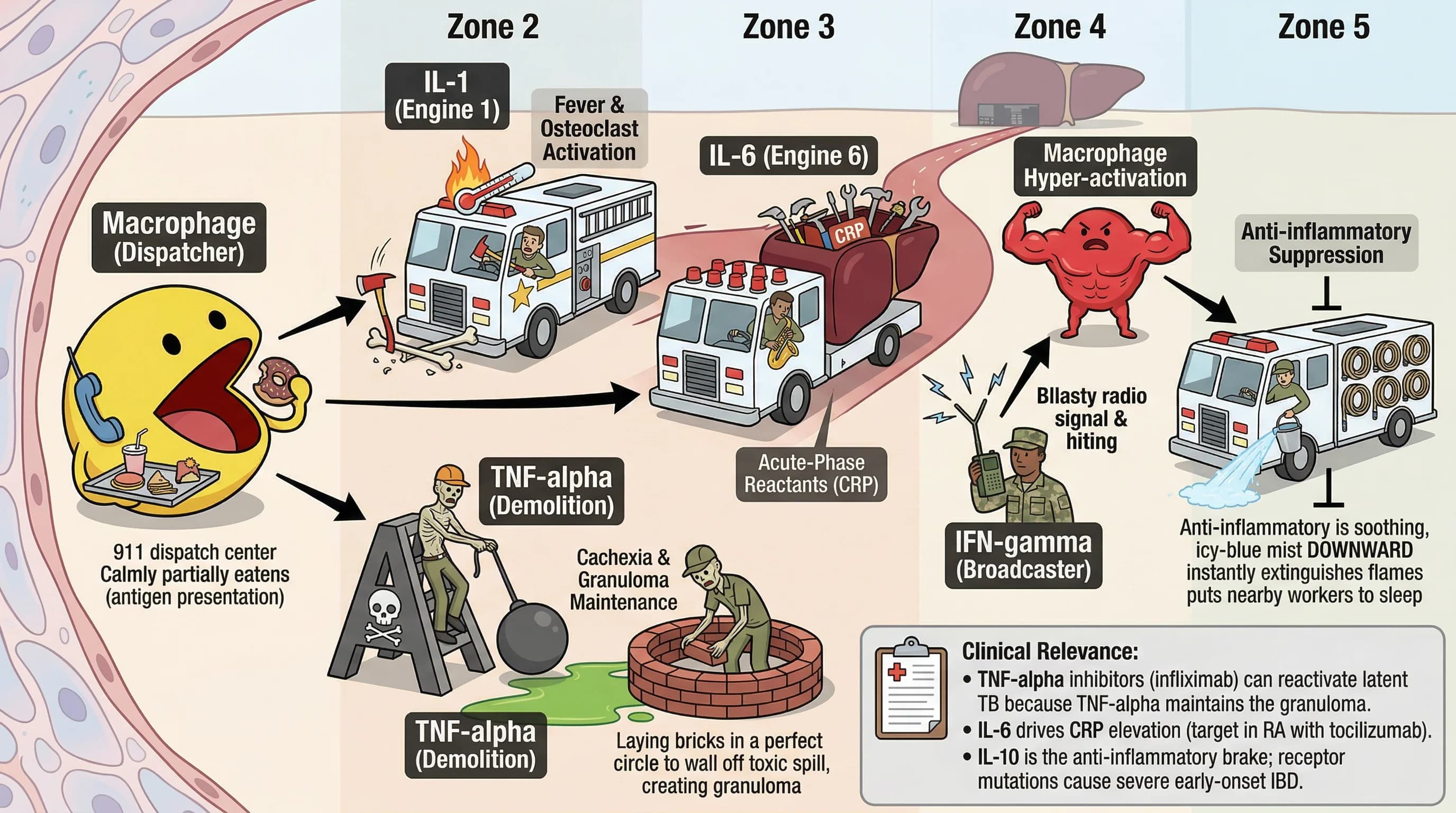

Visual mnemonic for Cytokine Families (IL-1 IL-6 TNF-alpha IFN-gamma IL-10) using Emergency Response / Fire Department analogy

AI-generated illustration for educational purposes

Generate your own
1 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual ElementMedical Concept
911 Dispatcher / Fire ChiefMacrophage
Engine 1 (First Responder)Interleukin-1 (IL-1)
Engine 6 (Logistics Coordinator)Interleukin-6 (IL-6)
Demolition & Roadblock CrewTumor Necrosis Factor-alpha (TNF-alpha)
The General's Radio BroadcasterInterferon-gamma (IFN-gamma)
Engine 10 (The 'All Clear' Water Cannon)Interleukin-10 (IL-10)

The Story

911 Dispatcher / Fire Chief (Macrophage) — Just as a dispatcher receives the initial 911 call (pathogen detection) and sends out specific fire engines and crews (cytokines) to handle the crisis, the macrophage initiates the inflammatory cascade.. Engine 1 (First Responder) (Interleukin-1 (IL-1)) — Engine 1 arrives first to generate heat (fever) and uses axes to break down physical barriers (osteoclast activation) to access the fire.. Engine 6 (Logistics Coordinator) (Interleukin-6 (IL-6)) — Engine 6 doesn't just fight the fire locally; it radios the central warehouse (liver) to send heavy supplies and backup equipment (acute-phase reactants).. Demolition & Roadblock Crew (Tumor Necrosis Factor-alpha (TNF-alpha)) — This crew opens up the roads for fire trucks (vascular permeability), tears down unstable structures (cachexia/wasting), and builds circular brick containment walls around hazardous spills (granulomas).. The General's Radio Broadcaster (Interferon-gamma (IFN-gamma)) — The broadcaster sends a high-frequency signal that supercharges the Fire Chief (macrophage activation), making them work aggressively to clear the debris.. Engine 10 (The 'All Clear' Water Cannon) (Interleukin-10 (IL-10)) — Engine 10 sprays a cooling mist over the entire scene, shutting down the sirens and telling the other engines to pack up and go home, preventing collateral water damage (anti-inflammatory)..

Cheatsheet

# Cytokine Families (IL-1 IL-6 TNF-alpha IFN-gamma IL-10)

## Clinical Pearl
If you remember ONE thing, it's that TNF-alpha inhibitors (like infliximab) can cause latent Tuberculosis to reactivate because TNF-alpha is absolutely required to maintain the granuloma. Additionally, IL-6 is the primary driver of CRP elevation, making it a key target in rheumatoid arthritis (tocilizumab). IL-10 is your anti-inflammatory brake; mutations in IL-10 receptors lead to severe early-onset inflammatory bowel disease.

## Memory Targets
- IL-1 causes fever and osteoclast activation.
- IL-6 stimulates the liver to produce acute-phase reactants (like CRP).
- TNF-alpha mediates cachexia (muscle wasting/weight loss) in malignancy.
- TNF-alpha is required to maintain granulomas (e.g., in Tuberculosis).
- IFN-gamma activates macrophages to kill phagocytosed pathogens.
- IL-10 (along with TGF-beta) is a major anti-inflammatory cytokine.

## Process Steps
undefined. Macrophage detects a pathogen and initiates the acute inflammatory response.
undefined. IL-1 and TNF-alpha are released locally, causing fever, endothelial activation, and vascular leak.
undefined. IL-6 enters systemic circulation and travels to the liver to induce acute-phase reactant production.
undefined. IFN-gamma arrives from Th1 cells, hyper-activating the macrophage and coordinating granuloma formation with TNF-alpha.
undefined. IL-10 is secreted to suppress macrophage activity, halt pro-inflammatory cytokine release, and resolve inflammation.

## Phonetic & Etymology Clues
Macrophage: Macro (giant) + phage (eating/pac-man mouth) = Giant dispatcher eating a donut,Interleukin-1: Inter (entering) + leukin (white) + 1 (number 1 badge) = White Engine 1 entering the scene,Interleukin-6: Inter (entering) + leukin (white) + 6 (saxophone/six) = White Engine 6 playing a saxophone,TNF-alpha: Tumor (tombstone) + Necrosis (skull) + alpha (A-symbol) = Demolition crew with an 'A' shaped wrecking ball and skull logo,IFN-gamma: Interfere (radio static) + gamma (Y-shaped antenna) = Radio broadcaster with a Y-shaped antenna causing static,Interleukin-10: Inter (entering) + leukin (white) + 10 (tin bucket) = White Engine 10 carrying a tin bucket

## Entity Summary
- **Macrophage**: A phagocytic innate immune cell that detects pathogens, initiates the inflammatory response by secreting cytokines, and can be hyper-activated to destroy phagocytosed microbes. → Secretes IL-1, IL-6, and TNF-alpha upon activation, Activated by IFN-gamma, Inhibited by IL-10
- **Interleukin-1 (IL-1)**: An endogenous pyrogen that causes fever, acute inflammation, activates endothelium to express adhesion molecules, and stimulates osteoclasts. → Secreted by Macrophage, Acts synergistically with TNF-alpha
- **Interleukin-6 (IL-6)**: A pro-inflammatory cytokine that causes fever and stimulates the liver to produce acute-phase reactants (like CRP). → Secreted by Macrophage, Stimulates liver hepatocytes
- **Tumor Necrosis Factor-alpha (TNF-alpha)**: Mediates septic shock, causes vascular leak, induces cachexia in malignancy, and is critical for the formation and maintenance of granulomas. → Secreted by Macrophage, Acts synergistically with IL-1
- **Interferon-gamma (IFN-gamma)**: A type II interferon secreted by Th1 cells and NK cells that stimulates macrophages to kill phagocytosed pathogens and promotes granuloma formation. → Activates Macrophage, Inhibited by IL-10
- **Interleukin-10 (IL-10)**: An anti-inflammatory cytokine that attenuates the immune response, inhibits macrophage activation, and decreases Th1 cytokine production. → Inhibits Macrophage, Inhibits IFN-gamma production

Clinical Pearl

If you remember ONE thing, it's that TNF-alpha inhibitors (like infliximab) can cause latent Tuberculosis to reactivate because TNF-alpha is absolutely required to maintain the granuloma. Additionally, IL-6 is the primary driver of CRP elevation, making it a key target in rheumatoid arthritis (tocilizumab). IL-10 is your anti-inflammatory brake; mutations in IL-10 receptors lead to severe early-onset inflammatory bowel disease.
