Diabetic Nephropathy Histological Changes (Kimmelstiel-Wilson Nodules GBM Thickening)

Analogy: Industrial Plumbing / Water Filtration

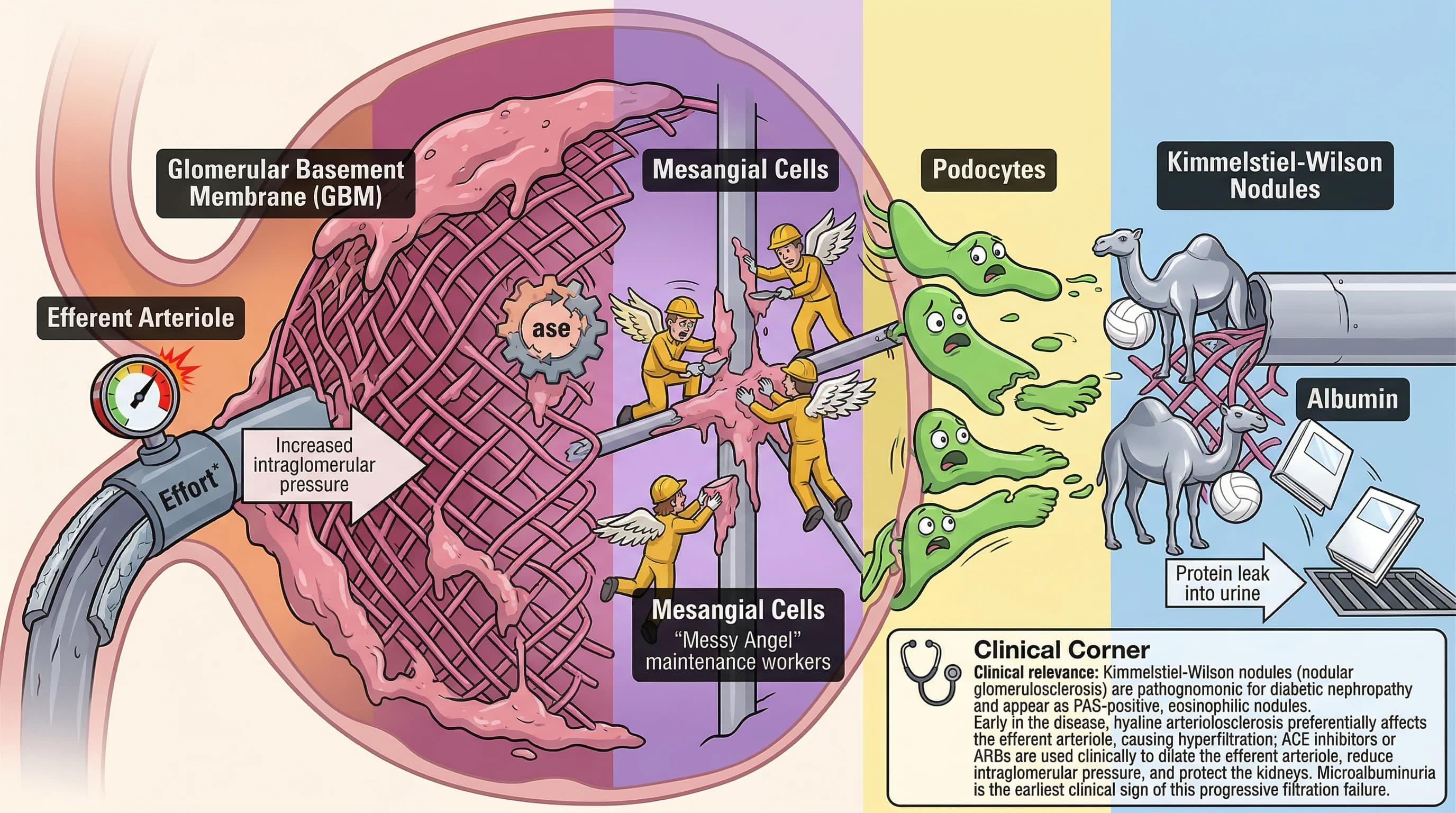

AI-generated illustration for educational purposes

1 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Primary filtration mesh heavily caked with sticky sugar-sludge	Glomerular Basement Membrane (GBM)	Just as the GBM thickens from glycosylation but loses its selective barrier function, the industrial mesh becomes thick and caked with sludge, causing it to warp and let large objects slip through.
Messy Angel maintenance workers	Mesangial Cells	These winged workers (Messy Angels) respond to the high-sugar environment by overproducing structural cement (extracellular matrix), expanding the central support struts until they choke the system.
Steel camels holding Wilson volleyballs	Kimmelstiel-Wilson Nodules	These massive, hardened, spherical blockages (Steel Camels with Wilson balls) form at the periphery of the filtration units, permanently damaging the plumbing, mirroring the peripheral nodular glomerulosclerosis.
The 'Effort' outflow valve	Efferent Arteriole	This outflow pipe becomes stiff and narrowed with glassy scale (hyaline arteriolosclerosis), requiring immense 'Effort' to push water out, creating massive back-pressure (hyperfiltration) that damages upstream filters.
Foot-shaped sensor pods with eyes	Podocytes	These delicate secondary baffles sit on the outside of the filter. Under the extreme back-pressure from the outflow valve, their 'feet' get flattened and ripped off (effacement).
Glowing white photo albums	Albumin	These represent highly valuable items that are supposed to be retained in the clean water system, but tragically leak out into the waste stream when the primary mesh and sensor pods fail.

The Story

Primary filtration mesh heavily caked with sticky sugar-sludge (Glomerular Basement Membrane (GBM)) — Just as the GBM thickens from glycosylation but loses its selective barrier function, the industrial mesh becomes thick and caked with sludge, causing it to warp and let large objects slip through.. Messy Angel maintenance workers (Mesangial Cells) — These winged workers (Messy Angels) respond to the high-sugar environment by overproducing structural cement (extracellular matrix), expanding the central support struts until they choke the system.. Steel camels holding Wilson volleyballs (Kimmelstiel-Wilson Nodules) — These massive, hardened, spherical blockages (Steel Camels with Wilson balls) form at the periphery of the filtration units, permanently damaging the plumbing, mirroring the peripheral nodular glomerulosclerosis.. The 'Effort' outflow valve (Efferent Arteriole) — This outflow pipe becomes stiff and narrowed with glassy scale (hyaline arteriolosclerosis), requiring immense 'Effort' to push water out, creating massive back-pressure (hyperfiltration) that damages upstream filters.. Foot-shaped sensor pods with eyes (Podocytes) — These delicate secondary baffles sit on the outside of the filter. Under the extreme back-pressure from the outflow valve, their 'feet' get flattened and ripped off (effacement).. Glowing white photo albums (Albumin) — These represent highly valuable items that are supposed to be retained in the clean water system, but tragically leak out into the waste stream when the primary mesh and sensor pods fail..

Cheatsheet

# Diabetic Nephropathy Histological Changes (Kimmelstiel-Wilson Nodules GBM Thickening)

## Clinical Pearl
If you remember ONE thing, it's that Kimmelstiel-Wilson nodules (nodular glomerulosclerosis) are pathognomonic for diabetic nephropathy and appear as PAS-positive, eosinophilic nodules. Early in the disease, hyaline arteriolosclerosis preferentially affects the efferent arteriole, causing hyperfiltration; ACE inhibitors or ARBs are used clinically to dilate the efferent arteriole, reduce intraglomerular pressure, and protect the kidneys. Microalbuminuria is the earliest clinical sign of this progressive filtration failure.

## Process Steps
undefined. Non-enzymatic glycosylation causes the Glomerular Basement Membrane to thicken, while the Efferent Arteriole undergoes hyaline arteriolosclerosis.
undefined. The narrowed Efferent Arteriole increases intraglomerular pressure, causing hyperfiltration and mechanical stress on the glomerular tuft.
undefined. Mesangial Cells respond to the hyperglycemia and mechanical stress by expanding and secreting excess extracellular matrix.
undefined. Podocytes undergo effacement and detachment due to the sustained high pressure and biochemical injury.
undefined. Massive matrix deposition forms Kimmelstiel-Wilson Nodules at the periphery, and Albumin leaks into the urine.

## Phonetic & Etymology Clues
Kimmelstiel-Wilson Nodules: Kimmel (Camel) + stiel (Steel) + Wilson (Wilson volleyball) = Steel camels wedged in the pipes holding Wilson volleyballs,Mesangial Cells: Mes (Mess) + angial (Angel) = Messy Angels (maintenance workers with wings covered in structural sludge),Podocytes: Podo (Foot/Pod) + cytes (Sight/Eyes) = Foot-shaped sensor pods with eyes,Efferent Arteriole: Efferent (Effort) = A narrowed outflow pipe requiring immense 'Effort' to push fluid through,Albumin: Album (Photo album) = Glowing white photo albums (valuable items) leaking through the broken filter

## Entity Summary
- **Glomerular Basement Membrane (GBM)**: The primary filtration barrier that undergoes early thickening due to non-enzymatic glycosylation of proteins, paradoxically becoming more permeable. → Podocytes, Mesangial Cells, Albumin
- **Mesangial Cells**: Central support cells of the glomerulus that expand and secrete excess extracellular matrix in response to hyperglycemia and mechanical stress. → Glomerular Basement Membrane (GBM), Kimmelstiel-Wilson Nodules
- **Kimmelstiel-Wilson Nodules**: Pathognomonic nodular glomerulosclerosis consisting of PAS-positive, eosinophilic matrix deposits at the periphery of the glomerular tuft. → Mesangial Cells, Glomerular Basement Membrane (GBM)
- **Efferent Arteriole**: The outflow vessel of the glomerulus, which undergoes hyaline arteriolosclerosis, increasing intraglomerular pressure and causing hyperfiltration. → Glomerular Basement Membrane (GBM), Podocytes
- **Podocytes**: Visceral epithelial cells with foot processes that form the final filtration barrier; they undergo effacement and detachment due to hyperfiltration injury. → Glomerular Basement Membrane (GBM), Albumin
- **Albumin**: A major plasma protein that abnormally leaks into the urine (microalbuminuria progressing to macroalbuminuria) as the filtration barrier fails. → Glomerular Basement Membrane (GBM), Podocytes

Clinical Pearl

If you remember ONE thing, it's that Kimmelstiel-Wilson nodules (nodular glomerulosclerosis) are pathognomonic for diabetic nephropathy and appear as PAS-positive, eosinophilic nodules. Early in the disease, hyaline arteriolosclerosis preferentially affects the efferent arteriole, causing hyperfiltration; ACE inhibitors or ARBs are used clinically to dilate the efferent arteriole, reduce intraglomerular pressure, and protect the kidneys. Microalbuminuria is the earliest clinical sign of this progressive filtration failure.
