Diabetic Nephropathy Molecular Pathogenesis (AGEs RAGE TGF-beta Podocyte Injury)

Analogy: Water Filtration Plant

AI-generated illustration for educational purposes

1 views

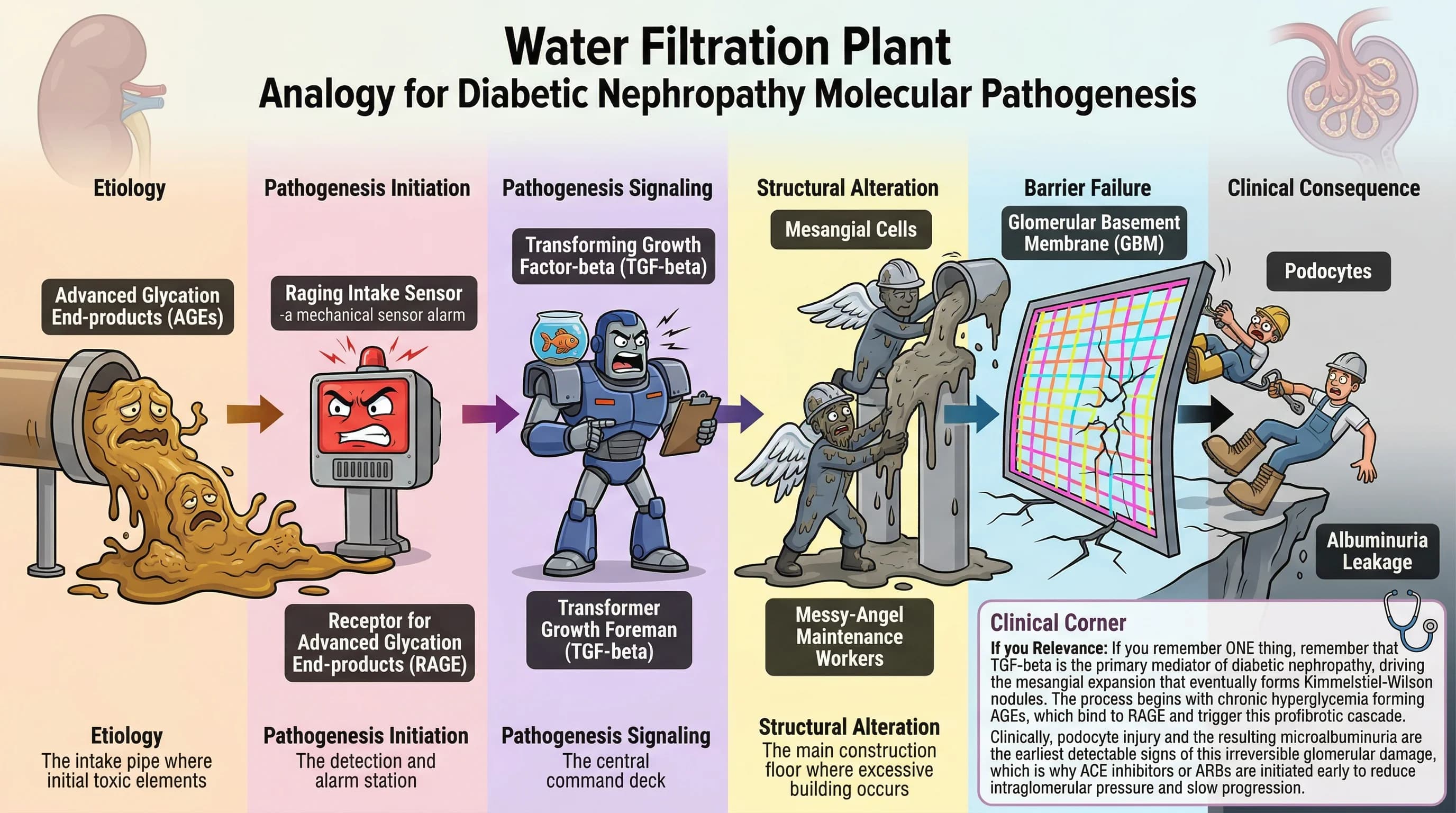

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Aged Gooey Effluent (Sticky Caramelized Sludge)	Advanced Glycation End-products (AGEs)	Just as AGEs are sticky, sugar-modified proteins that accumulate in the blood, the Aged Gooey Effluent is a thick, sugary sludge that flows into the filtration plant and gums up the machinery.
Raging Intake Sensor	Receptor for Advanced Glycation End-products (RAGE)	Just as RAGE detects AGEs and triggers an inflammatory cascade, the Raging Intake Sensor detects the sticky sludge and flashes angry red lights, triggering the plant's emergency response system.
Transformer Growth Foreman (with a Beta-fish)	Transforming Growth Factor-beta (TGF-beta)	Just as TGF-beta is a cytokine that commands cells to produce fibrotic matrix, the Foreman issues work orders commanding the plant workers to rapidly build thicker, bulkier concrete walls.
Messy-Angel Maintenance Workers	Mesangial Cells	Just as mesangial cells secrete extracellular matrix in the glomerulus, these workers constantly pour excessive amounts of concrete (matrix) into the plant's central support pillars when ordered by the Foreman.
Glowing Mesh Barrier	Glomerular Basement Membrane (GBM)	Just as the GBM thickens but becomes leaky in diabetic nephropathy, the Glowing Mesh Barrier gets caked in thick, brittle concrete that ironically cracks, allowing large debris to slip through.
Pod-footed Site-workers	Podocytes	Just as podocytes use foot processes to maintain the filtration barrier and efface (flatten/detach) when injured, these workers use giant boot-clamps to hold the mesh together, but lose their grip and fall off when the concrete becomes toxic and unstable.

The Story

Aged Gooey Effluent (Sticky Caramelized Sludge) (Advanced Glycation End-products (AGEs)) — Just as AGEs are sticky, sugar-modified proteins that accumulate in the blood, the Aged Gooey Effluent is a thick, sugary sludge that flows into the filtration plant and gums up the machinery.. Raging Intake Sensor (Receptor for Advanced Glycation End-products (RAGE)) — Just as RAGE detects AGEs and triggers an inflammatory cascade, the Raging Intake Sensor detects the sticky sludge and flashes angry red lights, triggering the plant's emergency response system.. Transformer Growth Foreman (with a Beta-fish) (Transforming Growth Factor-beta (TGF-beta)) — Just as TGF-beta is a cytokine that commands cells to produce fibrotic matrix, the Foreman issues work orders commanding the plant workers to rapidly build thicker, bulkier concrete walls.. Messy-Angel Maintenance Workers (Mesangial Cells) — Just as mesangial cells secrete extracellular matrix in the glomerulus, these workers constantly pour excessive amounts of concrete (matrix) into the plant's central support pillars when ordered by the Foreman.. Glowing Mesh Barrier (Glomerular Basement Membrane (GBM)) — Just as the GBM thickens but becomes leaky in diabetic nephropathy, the Glowing Mesh Barrier gets caked in thick, brittle concrete that ironically cracks, allowing large debris to slip through.. Pod-footed Site-workers (Podocytes) — Just as podocytes use foot processes to maintain the filtration barrier and efface (flatten/detach) when injured, these workers use giant boot-clamps to hold the mesh together, but lose their grip and fall off when the concrete becomes toxic and unstable..

Cheatsheet

# Diabetic Nephropathy Molecular Pathogenesis (AGEs RAGE TGF-beta Podocyte Injury)

## Clinical Pearl
If you remember ONE thing, remember that TGF-beta is the primary mediator of diabetic nephropathy, driving the mesangial expansion that eventually forms Kimmelstiel-Wilson nodules. The process begins with chronic hyperglycemia forming AGEs, which bind to RAGE and trigger this profibrotic cascade. Clinically, podocyte injury and the resulting microalbuminuria are the earliest detectable signs of this irreversible glomerular damage, which is why ACE inhibitors or ARBs are initiated early to reduce intraglomerular pressure and slow progression.

## Process Steps
undefined. Chronic hyperglycemia leads to the non-enzymatic glycation of proteins, forming Advanced Glycation End-products (AGEs) in the circulation.
undefined. AGEs bind to RAGE on the surface of glomerular cells, activating intracellular oxidative stress and inflammatory pathways.
undefined. RAGE activation induces the robust expression and release of TGF-beta, the primary profibrotic cytokine in the kidney.
undefined. TGF-beta stimulates Mesangial Cells to undergo hypertrophy and overproduce extracellular matrix, causing mesangial expansion and GBM thickening.
undefined. The altered, thickened GBM and toxic signaling environment cause Podocyte injury, leading to foot process effacement and detachment.
undefined. Loss of podocytes and compromised GBM integrity result in the failure of the filtration barrier, manifesting clinically as albuminuria.

## Phonetic & Etymology Clues
Advanced Glycation End-products: Aged (old/wrinkled) + Gooey (sticky sugar) + Effluent (waste stream) = Aged Gooey Effluent,RAGE: Raging (angry red face) + Sensor (alarm) = Raging Intake Sensor,TGF-beta: Transformer (robot suit) + Growth (expanding) + Foreman (boss with clipboard) + beta (pet Beta fish) = Transformer Growth Foreman,Mesangial: Mes (Messy/covered in sludge) + angi (Angel wings) + al (aluminum hardhats) = Messy-Angel Workers,Glomerular: Glowing (neon lights) + Mesh (screen) + Barrier (wall) = Glowing Mesh Barrier,Podocytes: Podo (Giant Podiatrist boots/feet) + cyte (Site worker) = Pod-footed Site-workers

## Entity Summary
- **Advanced Glycation End-products (AGEs)**: Proteins or lipids that become glycated as a result of exposure to sugars. In chronic hyperglycemia, they accumulate and cause tissue damage. → Receptor for Advanced Glycation End-products (RAGE)
- **Receptor for Advanced Glycation End-products (RAGE)**: A multi-ligand receptor of the immunoglobulin superfamily. Binding of AGEs to RAGE triggers intracellular oxidative stress and inflammatory signaling. → Advanced Glycation End-products (AGEs), Transforming Growth Factor-beta (TGF-beta)
- **Transforming Growth Factor-beta (TGF-beta)**: A potent profibrotic cytokine upregulated by AGE-RAGE signaling. It drives cellular hypertrophy and excessive extracellular matrix production. → Receptor for Advanced Glycation End-products (RAGE), Mesangial Cells
- **Mesangial Cells**: Specialized pericytes in the glomerulus that provide structural support. Under TGF-beta stimulation, they overproduce extracellular matrix, leading to nodular glomerulosclerosis. → Transforming Growth Factor-beta (TGF-beta), Glomerular Basement Membrane (GBM)
- **Glomerular Basement Membrane (GBM)**: The primary filtration barrier of the kidney. It undergoes pathological thickening but paradoxical increased permeability due to abnormal matrix composition. → Mesangial Cells, Podocytes
- **Podocytes**: Visceral epithelial cells with foot processes that wrap around glomerular capillaries. They undergo injury, effacement, and apoptosis due to mechanical stress and toxic signaling, leading to proteinuria. → Glomerular Basement Membrane (GBM)

Clinical Pearl

If you remember ONE thing, remember that TGF-beta is the primary mediator of diabetic nephropathy, driving the mesangial expansion that eventually forms Kimmelstiel-Wilson nodules. The process begins with chronic hyperglycemia forming AGEs, which bind to RAGE and trigger this profibrotic cascade. Clinically, podocyte injury and the resulting microalbuminuria are the earliest detectable signs of this irreversible glomerular damage, which is why ACE inhibitors or ARBs are initiated early to reduce intraglomerular pressure and slow progression.
