Eye Anatomy Layers (Retina Choroid Sclera)

Analogy: Digital Camera

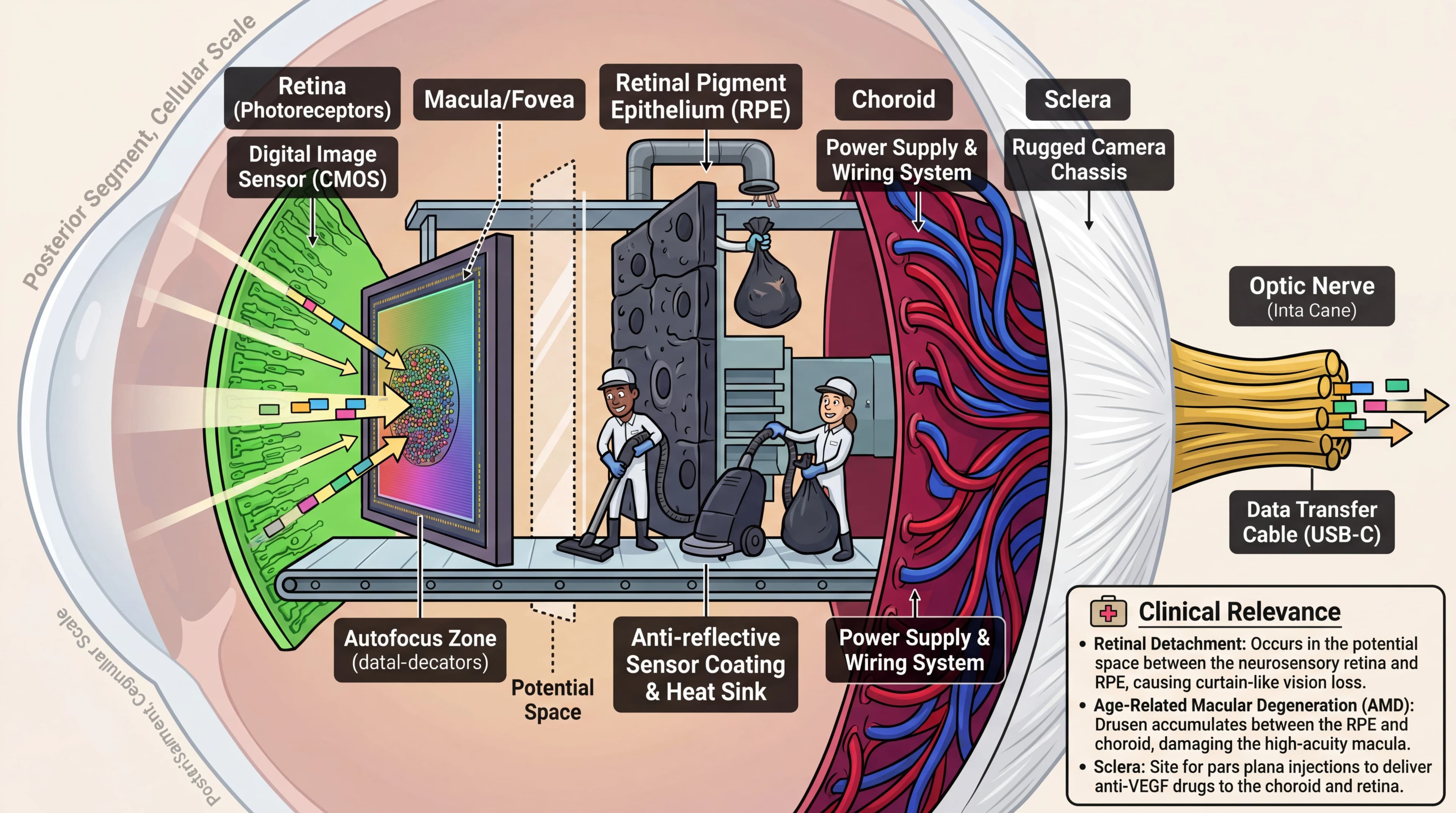

AI-generated illustration for educational purposes

13 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Digital Image Sensor (CMOS)	Retina (Photoreceptors)	Just as the image sensor captures incoming photons and converts them into digital electrical data, photoreceptors transduce light into neural action potentials.
Anti-reflective Sensor Coating & Heat Sink	Retinal Pigment Epithelium (RPE)	Just as the coating prevents light bounce (glare) and the heat sink clears metabolic waste (heat), the RPE absorbs stray photons and clears metabolic waste from photoreceptors.
Power Supply & Wiring System	Choroid	Just as the power system delivers electricity to keep the sensor functioning, the highly vascular choroid delivers continuous oxygen and nutrients to sustain the high-energy retina.
Rugged Camera Chassis	Sclera	Just as the hard outer casing protects delicate internal electronics and maintains the camera's shape, the fibrous sclera protects intraocular contents and maintains globe structure.
Data Transfer Cable (USB-C)	Optic Nerve	Just as the cable transmits digital image files from the camera to a computer processor, the optic nerve transmits neural signals to the brain's visual cortex.
High-Resolution Center Autofocus Zone	Macula/Fovea	Just as the center of the sensor is optimized for peak sharpness and detail capture, the fovea is packed with cones for maximum visual acuity.

The Story

Digital Image Sensor (CMOS) (Retina (Photoreceptors)) — Just as the image sensor captures incoming photons and converts them into digital electrical data, photoreceptors transduce light into neural action potentials.. Anti-reflective Sensor Coating & Heat Sink (Retinal Pigment Epithelium (RPE)) — Just as the coating prevents light bounce (glare) and the heat sink clears metabolic waste (heat), the RPE absorbs stray photons and clears metabolic waste from photoreceptors.. Power Supply & Wiring System (Choroid) — Just as the power system delivers electricity to keep the sensor functioning, the highly vascular choroid delivers continuous oxygen and nutrients to sustain the high-energy retina.. Rugged Camera Chassis (Sclera) — Just as the hard outer casing protects delicate internal electronics and maintains the camera's shape, the fibrous sclera protects intraocular contents and maintains globe structure.. Data Transfer Cable (USB-C) (Optic Nerve) — Just as the cable transmits digital image files from the camera to a computer processor, the optic nerve transmits neural signals to the brain's visual cortex.. High-Resolution Center Autofocus Zone (Macula/Fovea) — Just as the center of the sensor is optimized for peak sharpness and detail capture, the fovea is packed with cones for maximum visual acuity..

Cheatsheet

# Eye Anatomy Layers (Retina Choroid Sclera)

## Clinical Pearl
If you remember ONE thing, it is that the potential space between the neurosensory retina and the RPE is the site of retinal detachment, a medical emergency causing 'curtain-like' vision loss. Additionally, Age-Related Macular Degeneration (AMD) involves the accumulation of drusen between the RPE and choroid, severely impacting the high-acuity macula. The sclera is clinically important as the site for pars plana injections to deliver anti-VEGF drugs directly to the choroid and retina.

## Process Steps
undefined. Light enters the eye and strikes the Retina (Photoreceptors) and Macula/Fovea, initiating phototransduction.
undefined. The Retinal Pigment Epithelium (RPE) absorbs any scattered light to prevent visual blur and supports photoreceptor metabolism.
undefined. The Choroid continuously supplies oxygen and nutrients to the RPE and outer retina to sustain this high-energy process.
undefined. The Sclera maintains the structural integrity and precise shape of the globe, ensuring light remains perfectly focused on the retina.
undefined. Neural signals generated by the retina converge and exit the eye via the Optic Nerve to reach the brain.

## Phonetic & Etymology Clues

## Entity Summary
- **Retina (Photoreceptors)**: The inner neurosensory layer that captures photons and transduces light energy into electrical neural signals. → Retinal Pigment Epithelium (RPE), Optic Nerve, Macula/Fovea
- **Retinal Pigment Epithelium (RPE)**: A single layer of cells that nourishes photoreceptors, phagocytoses their shed outer segments, and absorbs scattered light to improve visual resolution. → Retina (Photoreceptors), Choroid
- **Choroid**: The highly vascularized middle layer of the eye that supplies oxygen and nutrients to the outer retina and RPE. → Retinal Pigment Epithelium (RPE), Sclera
- **Sclera**: The dense, fibrous, opaque outer coat of the eye that provides structural shape, protection, and attachment points for extraocular muscles. → Choroid
- **Optic Nerve**: A bundle of retinal ganglion cell axons that transmits processed visual information from the retina to the visual cortex. → Retina (Photoreceptors)
- **Macula/Fovea**: A specialized central region of the retina with a high concentration of cone photoreceptors, responsible for high-acuity central vision. → Retina (Photoreceptors)

Clinical Pearl

If you remember ONE thing, it is that the potential space between the neurosensory retina and the RPE is the site of retinal detachment, a medical emergency causing 'curtain-like' vision loss. Additionally, Age-Related Macular Degeneration (AMD) involves the accumulation of drusen between the RPE and choroid, severely impacting the high-acuity macula. The sclera is clinically important as the site for pars plana injections to deliver anti-VEGF drugs directly to the choroid and retina.
