physiology9.1

Fever Response Pattern (Prodrome Rise Plateau Crisis Recovery)

Analogy: HVAC / Smart Home Thermostat

AI-generated illustration for educational purposes

6 views

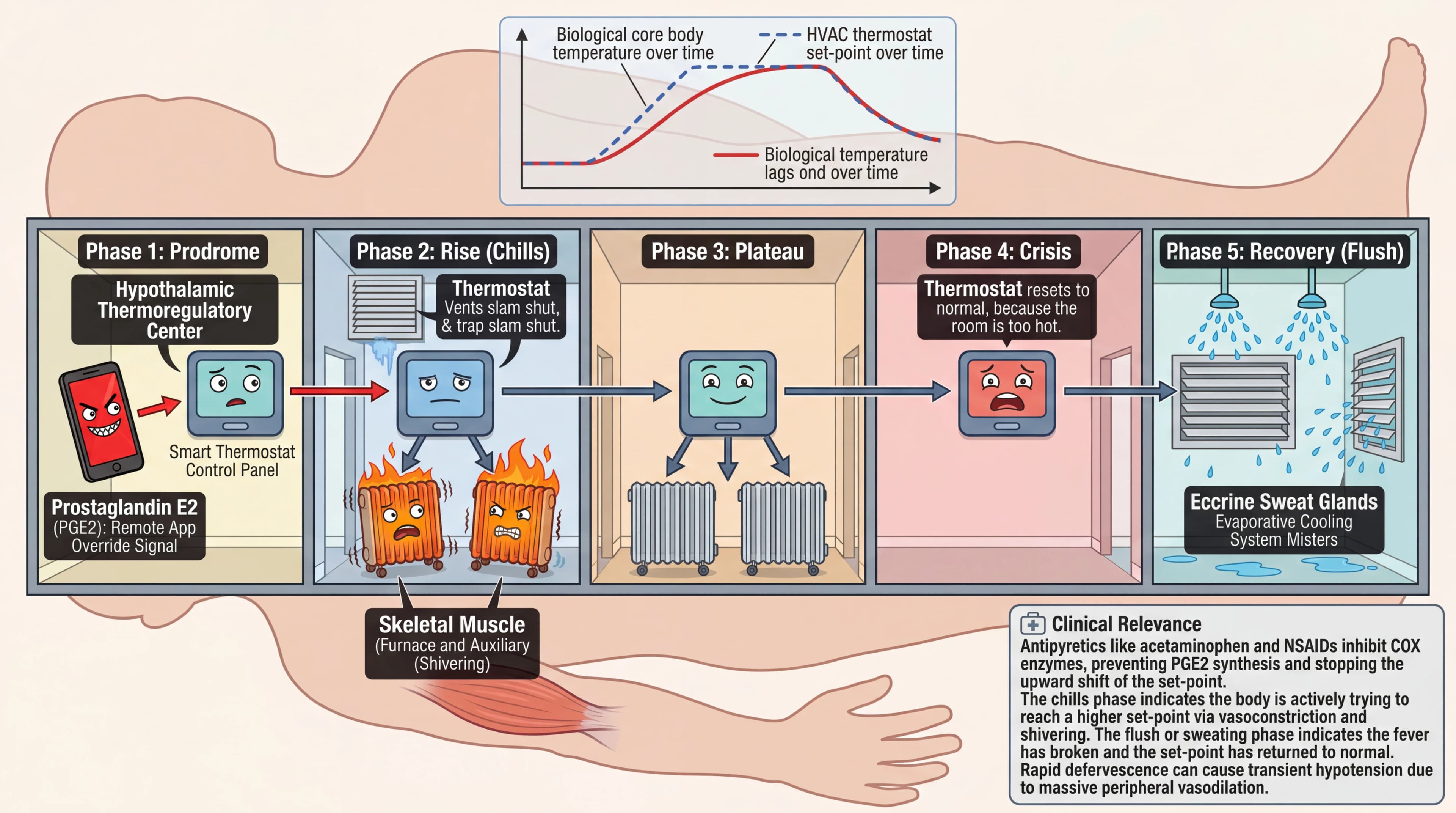

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Smart Thermostat Control Panel	Hypothalamic Thermoregulatory Center	Both function as the central processing unit that establishes the target temperature and commands effector systems (heating or cooling) to reach that specific target.
Remote App Override Signal	Prostaglandin E2 (PGE2)	Both act as external signals that artificially raise the system's target set-point above its normal baseline, tricking the system into thinking the current environment is too cold.
Furnace / Auxiliary Heaters	Skeletal Muscle	Both are activated to mechanically or combustively generate new heat when the system detects the current temperature is below the newly elevated set-point.
Automated Vents and Insulation Shutters	Peripheral Vasculature	Both physically close (constrict) to trap existing heat inside the structure, or open (dilate) to radiate excess heat to the external environment.
Evaporative Cooling System / Misters	Eccrine Sweat Glands	Both release fluid onto the surface to rapidly extract and dissipate heat via evaporation when the set-point drops back to normal and the system needs to cool down.

The Story

Smart Thermostat Control Panel (Hypothalamic Thermoregulatory Center) — Both function as the central processing unit that establishes the target temperature and commands effector systems (heating or cooling) to reach that specific target.. Remote App Override Signal (Prostaglandin E2 (PGE2)) — Both act as external signals that artificially raise the system's target set-point above its normal baseline, tricking the system into thinking the current environment is too cold.. Furnace / Auxiliary Heaters (Skeletal Muscle) — Both are activated to mechanically or combustively generate new heat when the system detects the current temperature is below the newly elevated set-point.. Automated Vents and Insulation Shutters (Peripheral Vasculature) — Both physically close (constrict) to trap existing heat inside the structure, or open (dilate) to radiate excess heat to the external environment.. Evaporative Cooling System / Misters (Eccrine Sweat Glands) — Both release fluid onto the surface to rapidly extract and dissipate heat via evaporation when the set-point drops back to normal and the system needs to cool down..

Cheatsheet

# Fever Response Pattern (Prodrome Rise Plateau Crisis Recovery)

## Clinical Pearl
If you remember ONE thing, it is that antipyretics like acetaminophen and NSAIDs work by inhibiting COX enzymes, preventing the synthesis of PGE2 and thus preventing the upward shift of the hypothalamic set-point. The 'chills' phase indicates the body is actively trying to reach a new, higher set-point (vasoconstriction/shivering), while the 'flush' or 'crisis' phase (sweating/vasodilation) indicates the fever has broken and the set-point has returned to normal. Clinically, a rapid drop in set-point (defervescence) can cause transient hypotension due to massive peripheral vasodilation.

## Process Steps
undefined. Prodrome: Endogenous pyrogens stimulate PGE2 synthesis, which elevates the set-point in the Hypothalamic Thermoregulatory Center. The patient feels cold because core temperature is now lower than the new set-point.
undefined. Rise (Chills): The hypothalamus triggers heat conservation via Peripheral Vasculature constriction and heat production via Skeletal Muscle shivering to reach the new elevated set-point.
undefined. Plateau: Core body temperature successfully reaches the new elevated hypothalamic set-point. Shivering ceases, and the patient feels warm but thermally stable.
undefined. Crisis (Defervescence): Pyrogen levels fall, PGE2 clears, and the Hypothalamic Thermoregulatory Center abruptly resets to the normal baseline temperature (37°C).
undefined. Recovery (Flush): The body perceives itself as too hot. Peripheral Vasculature dilates and Eccrine Sweat Glands activate to rapidly dissipate heat until core temperature returns to normal.

## Phonetic & Etymology Clues

## Entity Summary
- **Hypothalamic Thermoregulatory Center**: Acts as the body's central thermostat, establishing the core temperature set-point and orchestrating autonomic responses to maintain it. → Prostaglandin E2 (PGE2), Skeletal Muscle, Peripheral Vasculature
- **Prostaglandin E2 (PGE2)**: A lipid mediator synthesized in response to endogenous pyrogens (IL-1, IL-6, TNF-alpha) that crosses the blood-brain barrier to elevate the hypothalamic set-point. → Hypothalamic Thermoregulatory Center
- **Skeletal Muscle**: Executes shivering thermogenesis, rapidly contracting to generate metabolic heat when the core temperature is lower than the hypothalamic set-point. → Hypothalamic Thermoregulatory Center
- **Peripheral Vasculature**: Constricts to minimize heat loss to the environment during the fever rise, and dilates to radiate heat during defervescence. → Hypothalamic Thermoregulatory Center, Eccrine Sweat Glands
- **Eccrine Sweat Glands**: Secretes water and electrolytes onto the skin surface to facilitate rapid heat dissipation via evaporative cooling during the recovery phase. → Hypothalamic Thermoregulatory Center, Peripheral Vasculature

Clinical Pearl

If you remember ONE thing, it is that antipyretics like acetaminophen and NSAIDs work by inhibiting COX enzymes, preventing the synthesis of PGE2 and thus preventing the upward shift of the hypothalamic set-point. The 'chills' phase indicates the body is actively trying to reach a new, higher set-point (vasoconstriction/shivering), while the 'flush' or 'crisis' phase (sweating/vasodilation) indicates the fever has broken and the set-point has returned to normal. Clinically, a rapid drop in set-point (defervescence) can cause transient hypotension due to massive peripheral vasodilation.
