Heme Synthesis Pathway

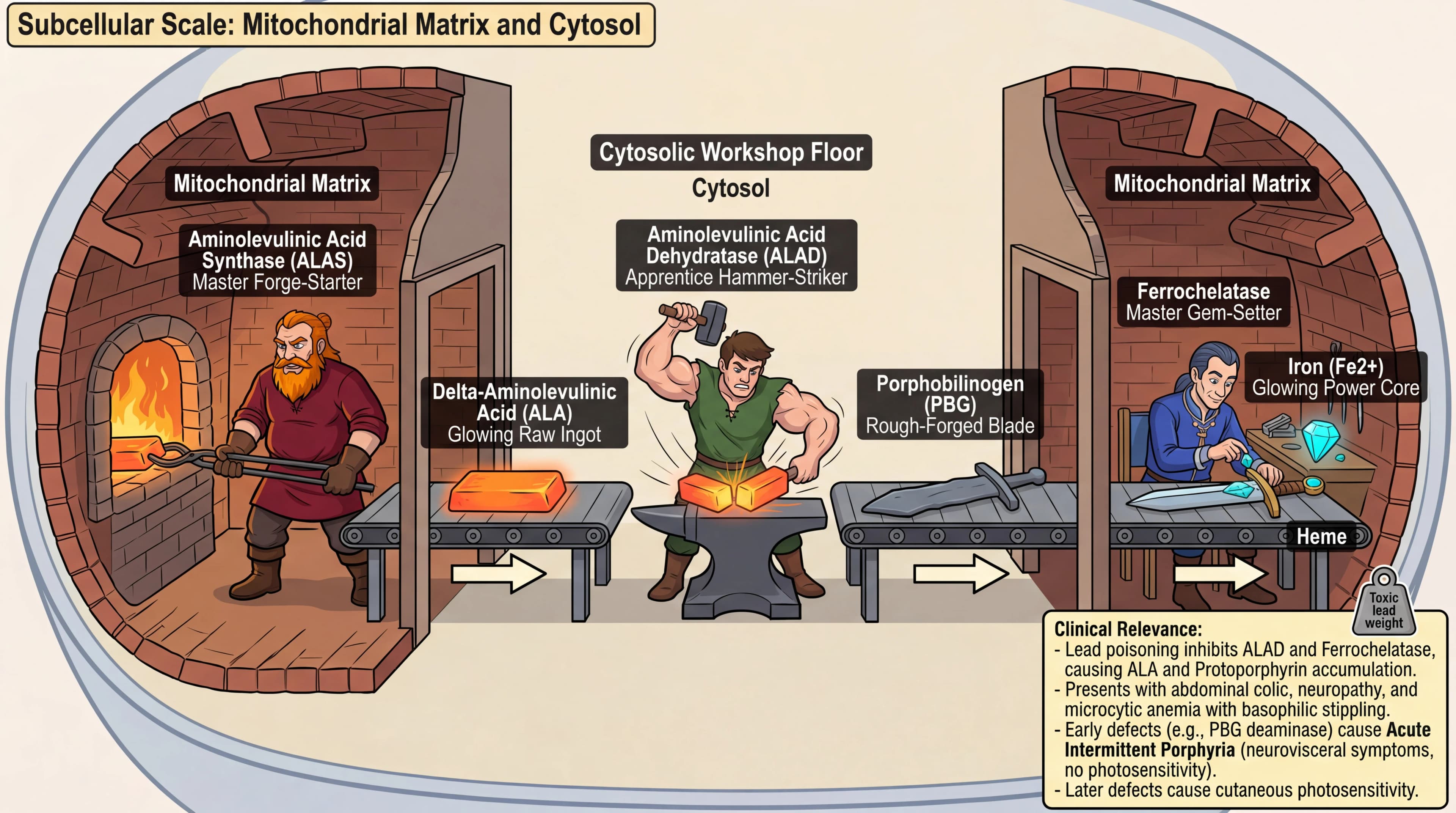

Analogy: Blacksmithing / Weapon Forge

AI-generated illustration for educational purposes

3 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Master Forge-Starter	Aminolevulinic acid synthase (ALAS)	Just as ALAS is the rate-limiting enzyme that initiates the pathway, the Master Forge-Starter controls the pace of the entire forge, deciding exactly how many weapons begin production.
Glowing Raw Ingot	Delta-aminolevulinic acid (ALA)	ALA is the first committed intermediate; similarly, the raw ingot is the first distinct product pulled from the initial furnace, ready to be shaped.
Apprentice Hammer-Striker	Aminolevulinic acid dehydratase (ALAD)	ALAD merges two ALA molecules together; the apprentice takes two raw ingots and hammers them together to form the base structure of the weapon.
Rough-Forged Blade	Porphobilinogen (PBG)	PBG is the structural building block (pyrrole ring) for the final porphyrin; the rough-forged blade is the structural foundation of the final sword.
Master Gem-Setter	Ferrochelatase	Ferrochelatase inserts iron into the porphyrin ring to complete heme; the Gem-Setter inserts the power core into the hilt to complete the functional weapon.
Glowing Power Core	Iron (Fe2+)	Iron is the functional center of heme that binds oxygen; the power core is the functional center of the sword that gives it its active striking power.

The Story

Master Forge-Starter (Aminolevulinic acid synthase (ALAS)) — Just as ALAS is the rate-limiting enzyme that initiates the pathway, the Master Forge-Starter controls the pace of the entire forge, deciding exactly how many weapons begin production.. Glowing Raw Ingot (Delta-aminolevulinic acid (ALA)) — ALA is the first committed intermediate; similarly, the raw ingot is the first distinct product pulled from the initial furnace, ready to be shaped.. Apprentice Hammer-Striker (Aminolevulinic acid dehydratase (ALAD)) — ALAD merges two ALA molecules together; the apprentice takes two raw ingots and hammers them together to form the base structure of the weapon.. Rough-Forged Blade (Porphobilinogen (PBG)) — PBG is the structural building block (pyrrole ring) for the final porphyrin; the rough-forged blade is the structural foundation of the final sword.. Master Gem-Setter (Ferrochelatase) — Ferrochelatase inserts iron into the porphyrin ring to complete heme; the Gem-Setter inserts the power core into the hilt to complete the functional weapon.. Glowing Power Core (Iron (Fe2+)) — Iron is the functional center of heme that binds oxygen; the power core is the functional center of the sword that gives it its active striking power..

Cheatsheet

# Heme Synthesis Pathway

## Clinical Pearl
If you remember ONE thing, it is that lead poisoning inhibits both Aminolevulinic acid dehydratase (ALAD) and Ferrochelatase, leading to the accumulation of ALA and Protoporphyrin. This presents clinically with abdominal colic, neuropathy, and microcytic anemia with basophilic stippling. Additionally, defects in early steps (like PBG deaminase) cause Acute Intermittent Porphyria (AIP), presenting with neurovisceral symptoms but no photosensitivity, whereas later defects cause cutaneous photosensitivity.

## Process Steps
undefined. Aminolevulinic acid synthase (ALAS) catalyzes the condensation of glycine and succinyl-CoA to form Delta-aminolevulinic acid (ALA) inside the mitochondria.
undefined. Delta-aminolevulinic acid (ALA) is transported into the cytosol where Aminolevulinic acid dehydratase (ALAD) binds to it.
undefined. ALAD condenses two molecules of ALA to synthesize the pyrrole ring structure known as Porphobilinogen (PBG).
undefined. Following several intermediate cytosolic and mitochondrial steps, Protoporphyrin IX is generated and awaits metal insertion back in the mitochondria.
undefined. Ferrochelatase inserts Iron (Fe2+) into Protoporphyrin IX, completing the synthesis of the Heme molecule.

## Phonetic & Etymology Clues


## Entity Summary
- **Aminolevulinic acid synthase (ALAS)**: The rate-limiting enzyme in heme synthesis that condenses glycine and succinyl-CoA into delta-aminolevulinic acid (ALA) using Vitamin B6 as a cofactor. → Delta-aminolevulinic acid (ALA)
- **Delta-aminolevulinic acid (ALA)**: The first intermediate product in the heme synthesis pathway, which is transported from the mitochondria to the cytosol. → Aminolevulinic acid synthase (ALAS), Aminolevulinic acid dehydratase (ALAD)
- **Aminolevulinic acid dehydratase (ALAD)**: A cytosolic enzyme that condenses two molecules of ALA to form porphobilinogen (PBG); highly sensitive to inhibition by lead. → Delta-aminolevulinic acid (ALA), Porphobilinogen (PBG)
- **Porphobilinogen (PBG)**: A pyrrole intermediate formed in the cytosol; accumulation of this and ALA causes neurovisceral symptoms in acute porphyrias. → Aminolevulinic acid dehydratase (ALAD)
- **Ferrochelatase**: The final enzyme in the pathway, located in the mitochondria, which inserts ferrous iron (Fe2+) into protoporphyrin IX to form heme. → Iron (Fe2+)
- **Iron (Fe2+)**: The essential metal ion that is coordinated into the center of the porphyrin ring to create functional heme, capable of binding oxygen. → Ferrochelatase

Clinical Pearl

If you remember ONE thing, it is that lead poisoning inhibits both Aminolevulinic acid dehydratase (ALAD) and Ferrochelatase, leading to the accumulation of ALA and Protoporphyrin. This presents clinically with abdominal colic, neuropathy, and microcytic anemia with basophilic stippling. Additionally, defects in early steps (like PBG deaminase) cause Acute Intermittent Porphyria (AIP), presenting with neurovisceral symptoms but no photosensitivity, whereas later defects cause cutaneous photosensitivity.
