Liquid Biopsy Circulating Tumor DNA Detection Pipeline (EGFR T790M Resistance Mutation)

Analogy: Gold Mining / Prospecting

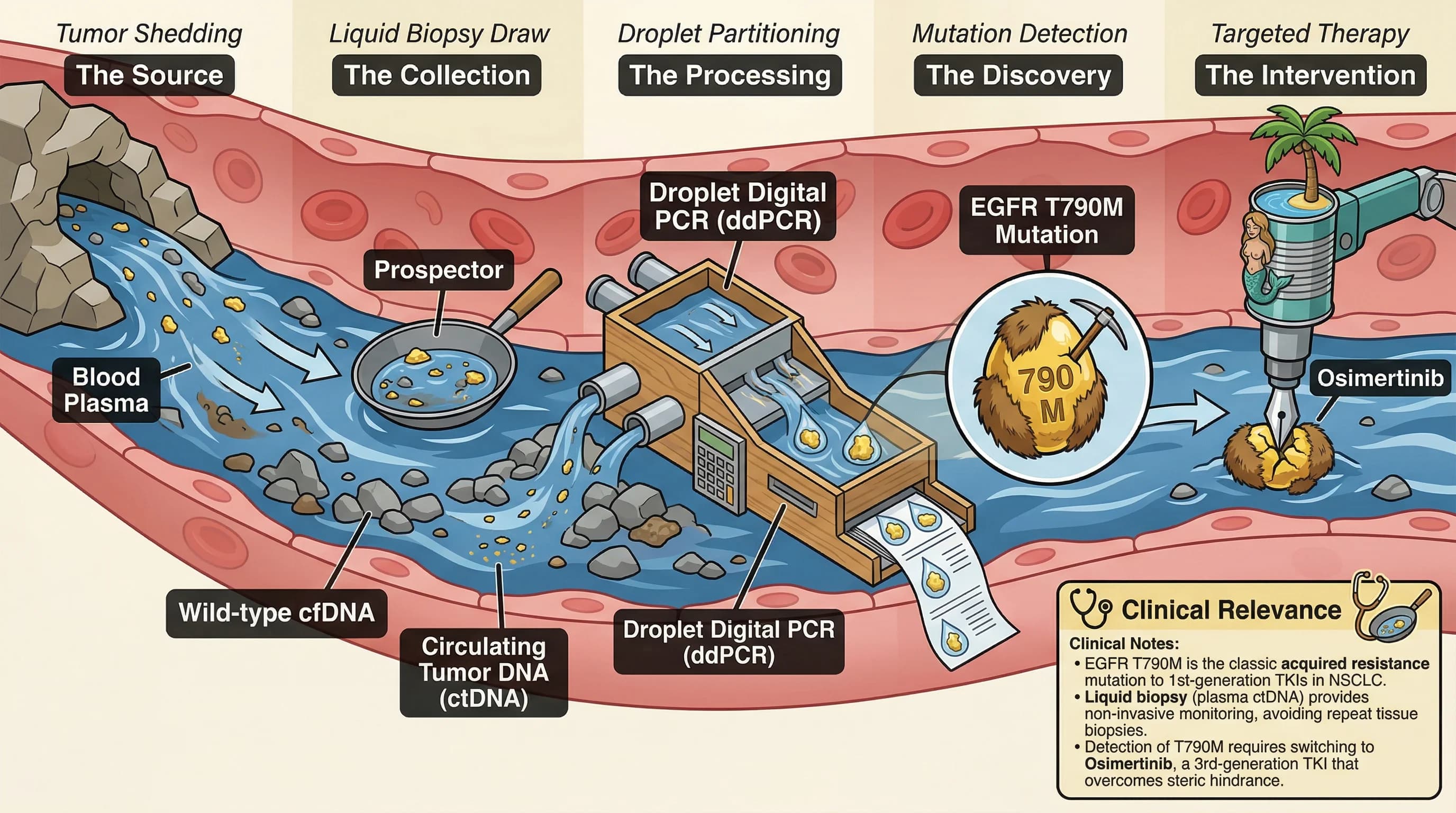

AI-generated illustration for educational purposes

4 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Flowing River Water	Blood Plasma	Just as plasma transports DNA fragments away from tissues throughout the body, the flowing river carries sediments and minerals downstream from the distant mountain.
Ordinary River Gravel and Silt	Wild-type Cell-Free DNA (cfDNA)	Just as cfDNA creates massive background noise that obscures rare tumor DNA, ordinary gravel is highly abundant and must be painstakingly sifted through to find anything of value.
Rare Gold Dust	Circulating Tumor DNA (ctDNA)	Just as ctDNA is a rare, valuable diagnostic target shed from a distant tumor, gold dust is a rare, valuable material shed from an upstream motherlode.
Egg-Fur T-790-Miner Nugget	EGFR T790M Mutation	Just as the T790M mutation alters the receptor's shape to block standard drugs (steric hindrance), this uniquely shaped gold nugget (an egg covered in fur with a T-790 stamp) breaks standard mining pickaxes and requires special handling.
Droplet Digital Photocopier Sluice Box	Droplet Digital PCR (ddPCR)	Just as ddPCR partitions samples into thousands of droplets to amplify and count rare mutations, this high-tech sluice box separates the river flow into tiny water droplets, using a digital photocopier to multiply and count the rare gold flakes.
Oasis-Mermaid-Tin-Nib Drill	Osimertinib	Just as Osimertinib is structurally designed to covalently bind the mutated T790M receptor, this specialized drill (decorated with an oasis, mermaid, tin can, and pen nib) is the only tool perfectly shaped to crack the unique Egg-Fur T-790-Miner nugget.

The Story

Flowing River Water (Blood Plasma) — Just as plasma transports DNA fragments away from tissues throughout the body, the flowing river carries sediments and minerals downstream from the distant mountain.. Ordinary River Gravel and Silt (Wild-type Cell-Free DNA (cfDNA)) — Just as cfDNA creates massive background noise that obscures rare tumor DNA, ordinary gravel is highly abundant and must be painstakingly sifted through to find anything of value.. Rare Gold Dust (Circulating Tumor DNA (ctDNA)) — Just as ctDNA is a rare, valuable diagnostic target shed from a distant tumor, gold dust is a rare, valuable material shed from an upstream motherlode.. Egg-Fur T-790-Miner Nugget (EGFR T790M Mutation) — Just as the T790M mutation alters the receptor's shape to block standard drugs (steric hindrance), this uniquely shaped gold nugget (an egg covered in fur with a T-790 stamp) breaks standard mining pickaxes and requires special handling.. Droplet Digital Photocopier Sluice Box (Droplet Digital PCR (ddPCR)) — Just as ddPCR partitions samples into thousands of droplets to amplify and count rare mutations, this high-tech sluice box separates the river flow into tiny water droplets, using a digital photocopier to multiply and count the rare gold flakes.. Oasis-Mermaid-Tin-Nib Drill (Osimertinib) — Just as Osimertinib is structurally designed to covalently bind the mutated T790M receptor, this specialized drill (decorated with an oasis, mermaid, tin can, and pen nib) is the only tool perfectly shaped to crack the unique Egg-Fur T-790-Miner nugget..

Cheatsheet

# Liquid Biopsy Circulating Tumor DNA Detection Pipeline (EGFR T790M Resistance Mutation)

## Clinical Pearl
If you remember ONE thing, it's that the EGFR T790M mutation is the classic mechanism of acquired resistance to 1st-generation EGFR inhibitors (like Erlotinib) in non-small cell lung cancer (NSCLC). Liquid biopsy (detecting ctDNA in plasma) provides a non-invasive method to monitor for this resistance mutation without requiring a repeat tissue biopsy. When the T790M mutation is detected, patients must be switched to Osimertinib, a 3rd-generation TKI that specifically targets this sterically hindered mutated receptor.

## Process Steps
undefined. Tumor cells undergo apoptosis and shed Circulating Tumor DNA (ctDNA) into the Blood Plasma alongside abundant Wild-type Cell-Free DNA (cfDNA).
undefined. A liquid biopsy is drawn from the patient, capturing the Blood Plasma containing the massive background of cfDNA and the rare fragments of ctDNA.
undefined. The plasma sample is processed using Droplet Digital PCR (ddPCR), partitioning the DNA mixture into thousands of individual droplets for isolated amplification.
undefined. ddPCR successfully amplifies and detects the rare EGFR T790M Mutation on the ctDNA fragments, distinguishing it from the wild-type background noise.
undefined. Identification of the EGFR T790M Mutation dictates a clinical switch in targeted therapy to Osimertinib to overcome the acquired drug resistance.

## Phonetic & Etymology Clues
EGFR T790M Mutation: Egg (E) + Fur (GFR) + T-shaped pickaxe (T) + 790 + Miner (M) = Egg-Fur T-790-Miner nugget,Osimertinib: Oasis (Osi) + Mermaid (mer) + Tin can (tin) + Pen Nib (ib) = Oasis-Mermaid-Tin-Nib drill,Droplet Digital PCR: Water Droplets (Droplet) + Digital calculator (Digital) + Photocopier (PCR) = Droplet Digital Photocopier sluice box

## Entity Summary
- **Blood Plasma**: The cell-free fluid component of blood that acts as a transport medium, carrying fragmented DNA shed from both healthy and apoptotic tumor cells. → Wild-type Cell-Free DNA (cfDNA), Circulating Tumor DNA (ctDNA)
- **Wild-type Cell-Free DNA (cfDNA)**: Normal, non-mutated DNA fragments released into the bloodstream by healthy cells undergoing apoptosis, creating massive background noise during sequencing. → Blood Plasma, Droplet Digital PCR (ddPCR)
- **Circulating Tumor DNA (ctDNA)**: Tumor-derived fragmented DNA in the bloodstream that represents a tiny, diagnostically valuable fraction of the total cell-free DNA. → Blood Plasma, EGFR T790M Mutation, Droplet Digital PCR (ddPCR)
- **EGFR T790M Mutation**: A specific point mutation (threonine to methionine at position 790) in the epidermal growth factor receptor that causes steric hindrance, conferring resistance to 1st-generation tyrosine kinase inhibitors. → Circulating Tumor DNA (ctDNA), Osimertinib
- **Droplet Digital PCR (ddPCR)**: A highly sensitive molecular technology that partitions a DNA sample into thousands of individual droplets to amplify and absolutely quantify rare mutant alleles amidst background wild-type DNA. → Wild-type Cell-Free DNA (cfDNA), Circulating Tumor DNA (ctDNA)
- **Osimertinib**: A 3rd-generation, irreversible EGFR tyrosine kinase inhibitor specifically designed to overcome T790M resistance by covalently binding to the mutated receptor. → EGFR T790M Mutation

Clinical Pearl

If you remember ONE thing, it's that the EGFR T790M mutation is the classic mechanism of acquired resistance to 1st-generation EGFR inhibitors (like Erlotinib) in non-small cell lung cancer (NSCLC). Liquid biopsy (detecting ctDNA in plasma) provides a non-invasive method to monitor for this resistance mutation without requiring a repeat tissue biopsy. When the T790M mutation is detected, patients must be switched to Osimertinib, a 3rd-generation TKI that specifically targets this sterically hindered mutated receptor.
