Neuromuscular Junction Signal Transmission

Analogy: Amphibious Military Assault

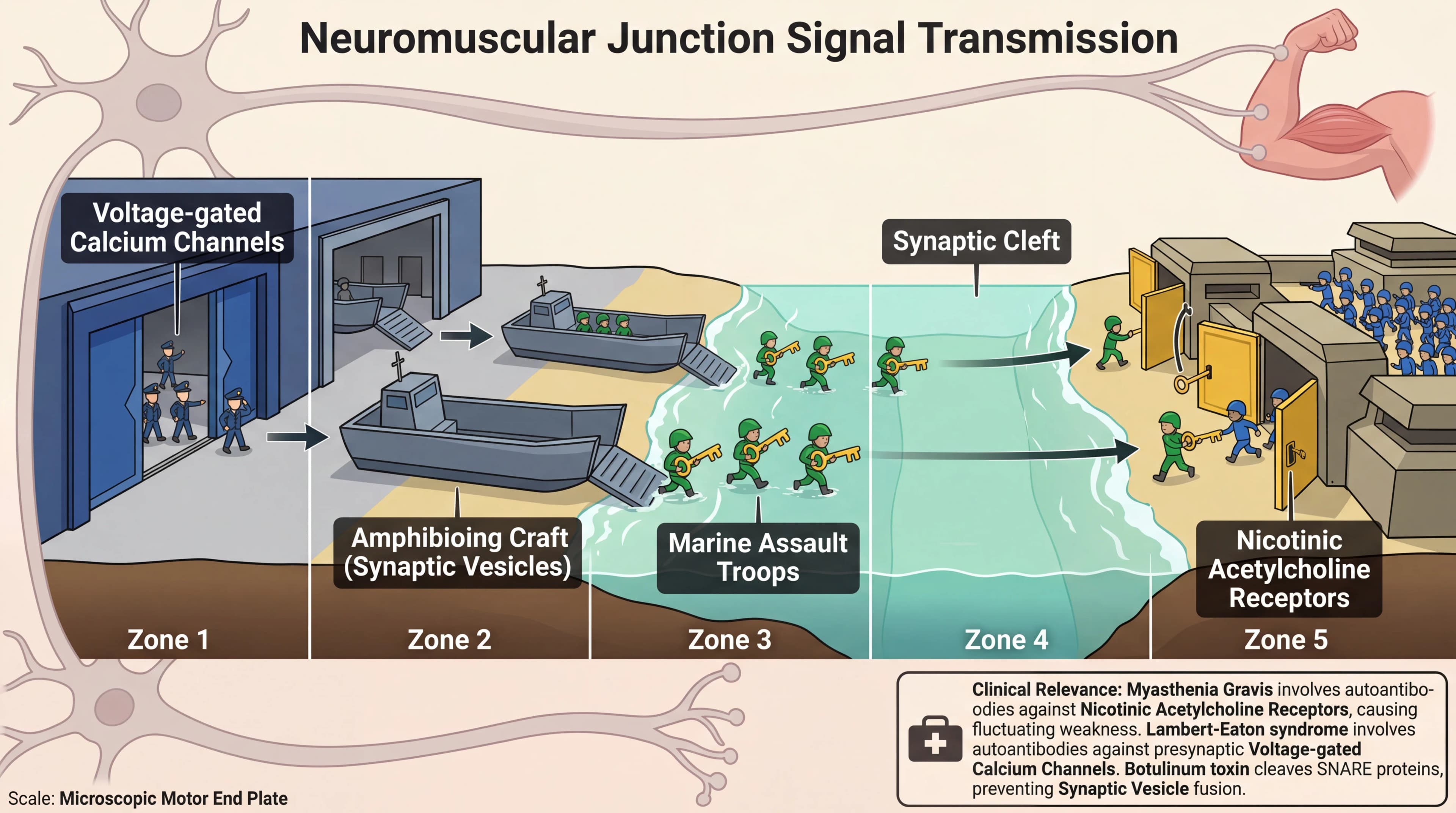

AI-generated illustration for educational purposes

5 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Command Post Blast Doors	Voltage-gated Calcium Channels	Just as the channels open to let calcium ions (launch commanders) inside to trigger vesicle fusion, the blast doors open to allow commanders into the base to initiate the amphibious launch.
Amphibious Landing Craft	Synaptic Vesicles	Just as vesicles store neurotransmitters and fuse with the presynaptic membrane to release them, landing craft hold troops and drop their ramps at the shoreline to deploy them.
Marine Assault Troops	Acetylcholine	Just as ACh molecules cross the cleft to bind receptors and trigger depolarization, marine troops cross the water to engage beachhead targets and trigger the inland invasion.
The Surf Zone	Synaptic Cleft	Just as the cleft is the physical fluid-filled gap neurotransmitters must diffuse across, the surf zone is the water gap the troops must cross to reach the enemy beach.
Beachhead Bunker Gates	Nicotinic Acetylcholine Receptors	Just as receptors open upon ACh binding to allow a massive sodium influx, bunker gates open when engaged by marine troops to allow the main invasion force to flood into the territory.

The Story

Command Post Blast Doors (Voltage-gated Calcium Channels) — Just as the channels open to let calcium ions (launch commanders) inside to trigger vesicle fusion, the blast doors open to allow commanders into the base to initiate the amphibious launch.. Amphibious Landing Craft (Synaptic Vesicles) — Just as vesicles store neurotransmitters and fuse with the presynaptic membrane to release them, landing craft hold troops and drop their ramps at the shoreline to deploy them.. Marine Assault Troops (Acetylcholine) — Just as ACh molecules cross the cleft to bind receptors and trigger depolarization, marine troops cross the water to engage beachhead targets and trigger the inland invasion.. The Surf Zone (Synaptic Cleft) — Just as the cleft is the physical fluid-filled gap neurotransmitters must diffuse across, the surf zone is the water gap the troops must cross to reach the enemy beach.. Beachhead Bunker Gates (Nicotinic Acetylcholine Receptors) — Just as receptors open upon ACh binding to allow a massive sodium influx, bunker gates open when engaged by marine troops to allow the main invasion force to flood into the territory..

Cheatsheet

# Neuromuscular Junction Signal Transmission

## Clinical Pearl
If you remember ONE thing, it is that autoantibodies against Nicotinic Acetylcholine Receptors cause Myasthenia Gravis, leading to fluctuating muscle weakness that worsens with use. Conversely, Lambert-Eaton myasthenic syndrome involves autoantibodies against presynaptic Voltage-gated Calcium Channels, where weakness typically improves with muscle use. Additionally, Botulinum toxin acts at this junction by cleaving SNARE proteins, preventing Synaptic Vesicle fusion and causing flaccid paralysis.

## Process Steps
undefined. An action potential arrives at the axon terminal, opening Voltage-gated Calcium Channels and allowing calcium to enter the neuron.
undefined. Calcium influx triggers Synaptic Vesicles to mobilize and fuse with the presynaptic membrane.
undefined. Acetylcholine is released from the vesicles into the Synaptic Cleft via exocytosis.
undefined. Acetylcholine diffuses across the fluid-filled Synaptic Cleft toward the motor end plate.
undefined. Acetylcholine binds to Nicotinic Acetylcholine Receptors, opening them to allow sodium influx and initiate muscle contraction.

## Phonetic & Etymology Clues


## Entity Summary
- **Voltage-gated Calcium Channels**: Ion channels on the presynaptic membrane that open in response to an action potential, allowing calcium influx which triggers neurotransmitter release. → Synaptic Vesicles
- **Synaptic Vesicles**: Membrane-bound organelles in the presynaptic terminal that store neurotransmitters and fuse with the cell membrane upon calcium entry. → Voltage-gated Calcium Channels, Acetylcholine, Synaptic Cleft
- **Acetylcholine**: The primary excitatory neurotransmitter of the somatic nervous system that diffuses across the synaptic gap to propagate the nerve signal to the muscle. → Synaptic Vesicles, Synaptic Cleft, Nicotinic Acetylcholine Receptors
- **Synaptic Cleft**: The extracellular fluid-filled space between the motor neuron axon terminal and the muscle fiber motor end plate. → Synaptic Vesicles, Acetylcholine, Nicotinic Acetylcholine Receptors
- **Nicotinic Acetylcholine Receptors**: Ligand-gated ion channels on the motor end plate that open when bound by acetylcholine, causing sodium influx and subsequent muscle depolarization. → Acetylcholine, Synaptic Cleft

Clinical Pearl

If you remember ONE thing, it is that autoantibodies against Nicotinic Acetylcholine Receptors cause Myasthenia Gravis, leading to fluctuating muscle weakness that worsens with use. Conversely, Lambert-Eaton myasthenic syndrome involves autoantibodies against presynaptic Voltage-gated Calcium Channels, where weakness typically improves with muscle use. Additionally, Botulinum toxin acts at this junction by cleaving SNARE proteins, preventing Synaptic Vesicle fusion and causing flaccid paralysis.
