Shock Classification and Management (Hypovolemic Cardiogenic Distributive Obstructive)

Analogy: Municipal Water Supply System

AI-generated illustration for educational purposes

1 views

Visual Dictionary

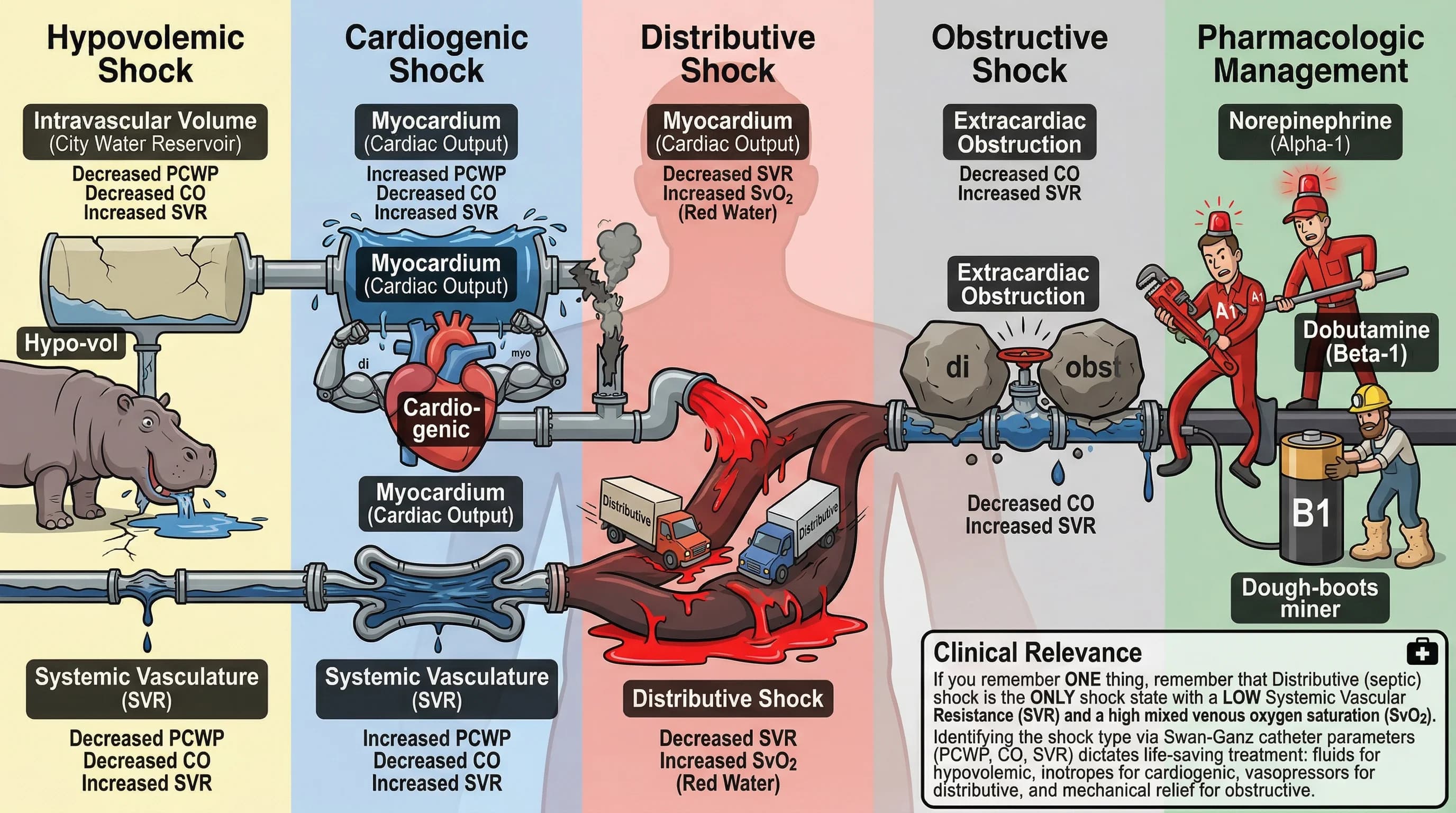

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
City Water Reservoir	Intravascular Volume	Both provide the essential fluid medium for the system. A leak in the reservoir (hypovolemia) leads to empty pipes and low pressure, regardless of pump function.
Central Pumping Station	Myocardium	Both generate the driving force to push fluid through the system. If the pump motor fails (cardiogenic shock), fluid backs up into the reservoir and downstream flow stops.
City Pipe Network	Systemic Vasculature	Both provide resistance to flow. If pipes suddenly widen and become floppy (distributive shock), pressure drops precipitously even if the pump and reservoir are full.
Crushed Main Water Valve	Extracardiac Obstruction	Both represent a physical barrier to flow. The pump works and fluid is present, but the blockage prevents forward movement, causing massive upstream backup.
'No-rip Pine' Pipe Wrench	Norepinephrine	Both act to mechanically tighten and constrict the distribution network, increasing resistance (SVR) to restore pressure in a dilated system.
'Dough-Boot' Pump Generator	Dobutamine	Both provide a direct power boost to the central pump, increasing its contractility and output to overcome mechanical failure.

The Story

City Water Reservoir (Intravascular Volume) — Both provide the essential fluid medium for the system. A leak in the reservoir (hypovolemia) leads to empty pipes and low pressure, regardless of pump function.. Central Pumping Station (Myocardium) — Both generate the driving force to push fluid through the system. If the pump motor fails (cardiogenic shock), fluid backs up into the reservoir and downstream flow stops.. City Pipe Network (Systemic Vasculature) — Both provide resistance to flow. If pipes suddenly widen and become floppy (distributive shock), pressure drops precipitously even if the pump and reservoir are full.. Crushed Main Water Valve (Extracardiac Obstruction) — Both represent a physical barrier to flow. The pump works and fluid is present, but the blockage prevents forward movement, causing massive upstream backup.. 'No-rip Pine' Pipe Wrench (Norepinephrine) — Both act to mechanically tighten and constrict the distribution network, increasing resistance (SVR) to restore pressure in a dilated system.. 'Dough-Boot' Pump Generator (Dobutamine) — Both provide a direct power boost to the central pump, increasing its contractility and output to overcome mechanical failure..

Cheatsheet

# Shock Classification and Management (Hypovolemic Cardiogenic Distributive Obstructive)

## Clinical Pearl
If you remember ONE thing, remember that Distributive (septic) shock is the ONLY shock state with a LOW Systemic Vascular Resistance (SVR) and a high mixed venous oxygen saturation (SvO2). Identifying the shock type via Swan-Ganz catheter parameters (PCWP, CO, SVR) dictates life-saving treatment: fluids for hypovolemic, inotropes for cardiogenic, vasopressors for distributive, and mechanical relief for obstructive.

## Memory Targets
- Distributive shock is the ONLY shock with decreased Systemic Vascular Resistance (SVR).
- Cardiogenic shock is characterized by an elevated Pulmonary Capillary Wedge Pressure (PCWP).
- Mixed Venous Oxygen Saturation (SvO2) is HIGH in distributive shock but LOW in hypovolemic and cardiogenic shock.
- Norepinephrine acts primarily on Alpha-1 receptors to increase SVR.
- Dobutamine acts primarily on Beta-1 receptors to increase Cardiac Output.

## Process Steps
undefined. Hypovolemic Shock: Intravascular volume is lost. Preload (PCWP) drops, Cardiac Output (CO) drops, and Systemic Vascular Resistance (SVR) increases to compensate.
undefined. Cardiogenic Shock: Myocardium fails. Preload (PCWP) increases as blood backs up, CO drops, and SVR increases to compensate.
undefined. Distributive Shock: Systemic vasculature massively dilates. SVR drops precipitously, CO initially increases to compensate, and PCWP remains low/normal.
undefined. Obstructive Shock: Extracardiac obstruction blocks flow. CO drops, SVR increases, and PCWP varies depending on right vs. left-sided blockage.
undefined. Pharmacologic Management: Norepinephrine constricts vasculature in distributive shock; Dobutamine increases myocardial contractility in cardiogenic shock.

## Phonetic & Etymology Clues
Hypovolemic: Hippo (hypo) + Volume (vol) = Hippo drinking all the water volume,Cardiogenic: Card (cardio) + Generator (genic) = Heart-shaped generator,Norepinephrine: No-rip (nor-epi) + Pine (nephrine) = Pine-scented 'no-rip' duct tape/wrench,Dobutamine: Dough (do) + Boots (buta) + Miner (mine) = Miner wearing dough-boots,Distributive: Delivery Trucks (distribute) = Delivery trucks crashing into pipes,Obstructive: Obstacle (obstruct) = Giant boulder obstacle

## Entity Summary
- **Intravascular Volume**: The total amount of blood plasma and red blood cells circulating within the vasculature, determining preload (PCWP/CVP). → Myocardium, Systemic Vasculature
- **Myocardium**: The muscular tissue of the heart responsible for pumping blood, determining Cardiac Output (CO). → Intravascular Volume, Systemic Vasculature, Dobutamine
- **Systemic Vasculature**: The network of blood vessels that constrict or dilate to maintain blood pressure, determining Systemic Vascular Resistance (SVR). → Myocardium, Norepinephrine
- **Extracardiac Obstruction**: A physical blockage outside the heart itself (e.g., Pulmonary Embolism, Tension Pneumothorax) that prevents blood flow. → Myocardium, Intravascular Volume
- **Norepinephrine**: An alpha-1 and beta-1 adrenergic agonist used as a first-line vasopressor to increase systemic vascular resistance. → Systemic Vasculature
- **Dobutamine**: A beta-1 adrenergic agonist used as an inotrope to increase myocardial contractility and cardiac output. → Myocardium
