Tuberculosis Granuloma Formation and Immune Response

Analogy: Nuclear Reactor Meltdown & Containment

AI-generated illustration for educational purposes

14 views

Visual Dictionary

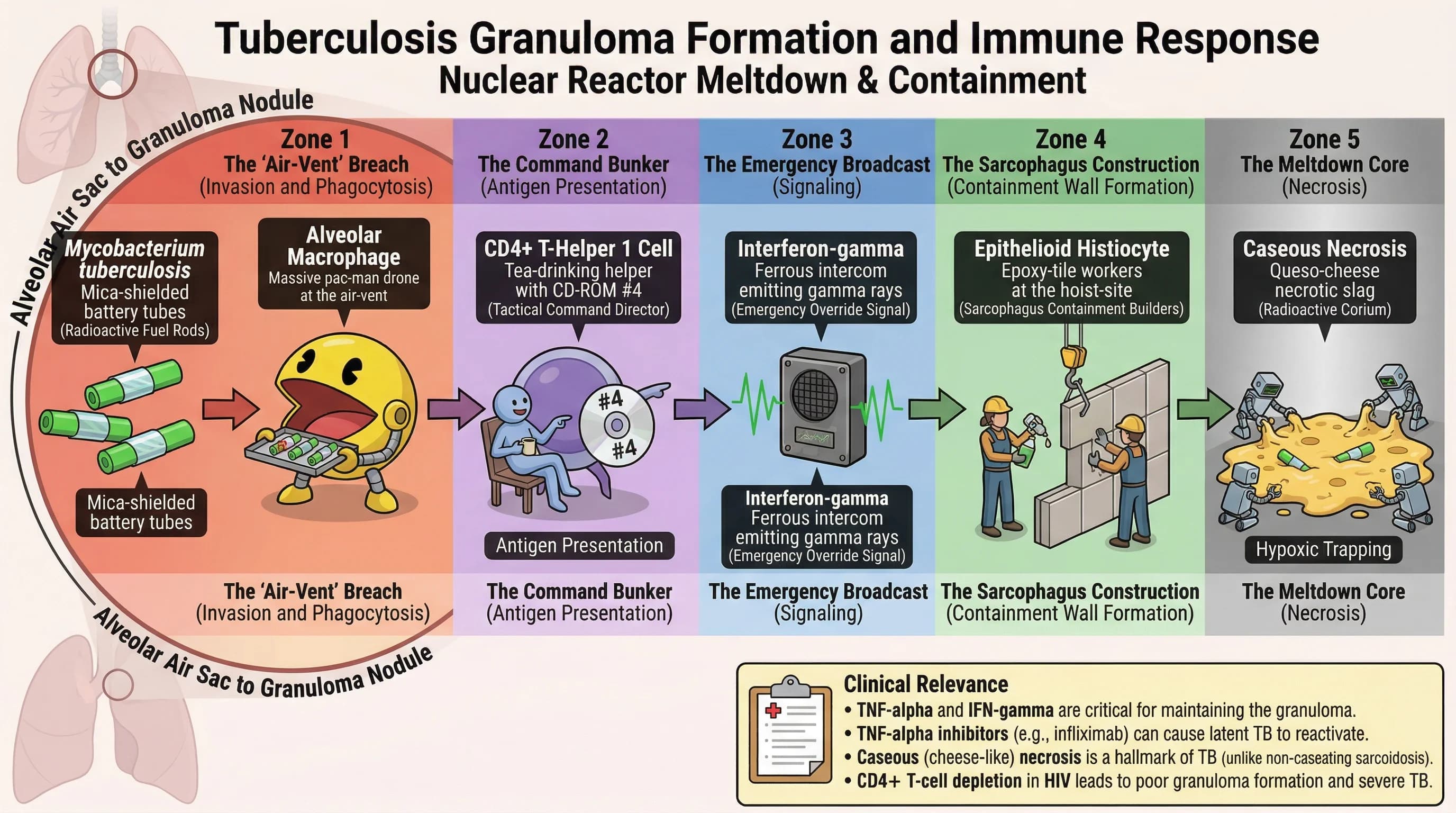

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Mica-shielded battery tubes (Radioactive Fuel Rods)	Mycobacterium tuberculosis	Just as TB bacilli resist degradation inside the macrophage's phagosome, the mica-shielded radioactive fuel rods resist being neutralized by the initial cleanup drones, causing a localized, toxic meltdown.
Massive pac-man drone at the air-vent (First Responder Cleanup Robot)	Alveolar Macrophage	Macrophages patrol the lung's air spaces (alveoli) and engulf pathogens, mirroring how cleanup robots patrol the reactor's air-vents to engulf radioactive debris, though they ultimately fail to destroy the core.
Tea-drinking helper with CD-ROM #4 (Tactical Command Director)	CD4+ T-Helper 1 Cell	The Th1 cell orchestrates the immune response from a distance without directly killing the pathogen, exactly like a command director coordinating the containment strategy from a safe bunker.
Ferrous intercom emitting gamma rays (Emergency Override Signal)	Interferon-gamma	IFN-gamma is the critical signal that upgrades macrophage killing power and structural changes, just as an emergency override signal upgrades the robots' containment protocols to build a permanent shield.
Epoxy-tile workers at the hoist-site (Sarcophagus Containment Builders)	Epithelioid Histiocyte	These modified macrophages interlock to form a physical, impenetrable barrier around the infection, just as specialized workers build a concrete and epoxy sarcophagus to permanently seal off a melted reactor core.
Queso-cheese necrotic slag (Radioactive Corium)	Caseous Necrosis	The center of the granuloma becomes a dead, cheese-like mass of destroyed cells and trapped bacilli, perfectly mirroring the melted, dead, toxic slag (corium) trapped at the heart of a nuclear meltdown.

The Story

Mica-shielded battery tubes (Radioactive Fuel Rods) (Mycobacterium tuberculosis) — Just as TB bacilli resist degradation inside the macrophage's phagosome, the mica-shielded radioactive fuel rods resist being neutralized by the initial cleanup drones, causing a localized, toxic meltdown.. Massive pac-man drone at the air-vent (First Responder Cleanup Robot) (Alveolar Macrophage) — Macrophages patrol the lung's air spaces (alveoli) and engulf pathogens, mirroring how cleanup robots patrol the reactor's air-vents to engulf radioactive debris, though they ultimately fail to destroy the core.. Tea-drinking helper with CD-ROM #4 (Tactical Command Director) (CD4+ T-Helper 1 Cell) — The Th1 cell orchestrates the immune response from a distance without directly killing the pathogen, exactly like a command director coordinating the containment strategy from a safe bunker.. Ferrous intercom emitting gamma rays (Emergency Override Signal) (Interferon-gamma) — IFN-gamma is the critical signal that upgrades macrophage killing power and structural changes, just as an emergency override signal upgrades the robots' containment protocols to build a permanent shield.. Epoxy-tile workers at the hoist-site (Sarcophagus Containment Builders) (Epithelioid Histiocyte) — These modified macrophages interlock to form a physical, impenetrable barrier around the infection, just as specialized workers build a concrete and epoxy sarcophagus to permanently seal off a melted reactor core.. Queso-cheese necrotic slag (Radioactive Corium) (Caseous Necrosis) — The center of the granuloma becomes a dead, cheese-like mass of destroyed cells and trapped bacilli, perfectly mirroring the melted, dead, toxic slag (corium) trapped at the heart of a nuclear meltdown..

Cheatsheet

# Tuberculosis Granuloma Formation and Immune Response

## Clinical Pearl
If you remember ONE thing, it's that TNF-alpha and IFN-gamma are critical for maintaining the granuloma; starting a patient on a TNF-alpha inhibitor (like infliximab) can cause latent TB to reactivate and disseminate. The caseous (cheese-like) necrosis at the center is a hallmark of TB granulomas, distinguishing them from non-caseating granulomas seen in sarcoidosis. Furthermore, CD4+ T-cell depletion in HIV patients leads to poor granuloma formation, resulting in severe, disseminated primary TB.

## Process Steps
undefined. Mycobacterium tuberculosis is inhaled into the lungs and phagocytosed by an Alveolar Macrophage, but evades intracellular destruction.
undefined. The infected Alveolar Macrophage travels to a lymph node or local tissue to present TB antigens to a naive T-cell, differentiating it into a CD4+ T-Helper 1 Cell.
undefined. The CD4+ T-Helper 1 Cell secretes Interferon-gamma, sending a powerful activation signal back to the infected and surrounding macrophages.
undefined. Stimulated by Interferon-gamma, macrophages differentiate into Epithelioid Histiocytes, which tightly interlock to form a cellular wall around the infection.
undefined. The center of the walled-off granuloma undergoes Caseous Necrosis, creating a hypoxic, acidic environment that traps the surviving bacilli in a dormant state.

## Phonetic & Etymology Clues
Mycobacterium tuberculosis: Mica (Myco) + battery (bacterium) + tubes (tuber) = Mica-shielded battery tubes,Alveolar Macrophage: Air-vent (Alveolar) + Massive (Macro) + pac-man/eater (phage) = Massive pac-man drone at the air-vent,CD4+ T-Helper 1 Cell: CD-ROM #4 (CD4) + Tea (T) + Helper = Tea-drinking helper with CD-ROM #4,Interferon-gamma: Intercom (Inter) + ferrous/iron (feron) + gamma rays (gamma) = Ferrous intercom emitting gamma rays,Epithelioid Histiocyte: Epoxy (Epi) + tile (thelioid) + Hoist (Histio) + site (cyte) = Epoxy-tile workers at the hoist-site,Caseous Necrosis: Queso/Cheese (Caseous) + Necrotic/Dead (Necrosis) = Queso-cheese necrotic slag

## Entity Summary
- **Mycobacterium tuberculosis**: An intracellular pathogenic bacterium that evades destruction within phagosomes, triggering a chronic immune response. → Alveolar Macrophage, Caseous Necrosis
- **Alveolar Macrophage**: The primary innate immune cell in the lungs that phagocytoses the bacilli but fails to clear them, subsequently presenting antigens to T-cells. → Mycobacterium tuberculosis, CD4+ T-Helper 1 Cell
- **CD4+ T-Helper 1 Cell**: An adaptive immune cell that recognizes presented TB antigens and orchestrates the immune response by releasing activating cytokines. → Alveolar Macrophage, Interferon-gamma
- **Interferon-gamma**: A critical cytokine secreted by Th1 cells that hyperactivates macrophages, enhancing their antimicrobial capacity and driving granuloma formation. → CD4+ T-Helper 1 Cell, Epithelioid Histiocyte
- **Epithelioid Histiocyte**: A differentiated, activated macrophage that undergoes morphological changes to tightly interlock with others, forming the physical wall of the granuloma. → Interferon-gamma, Caseous Necrosis
- **Caseous Necrosis**: A central area of cell death characterized by a cheese-like appearance, containing dead macrophages and dormant bacilli, created by the intense localized immune response. → Mycobacterium tuberculosis, Epithelioid Histiocyte

Clinical Pearl

If you remember ONE thing, it's that TNF-alpha and IFN-gamma are critical for maintaining the granuloma; starting a patient on a TNF-alpha inhibitor (like infliximab) can cause latent TB to reactivate and disseminate. The caseous (cheese-like) necrosis at the center is a hallmark of TB granulomas, distinguishing them from non-caseating granulomas seen in sarcoidosis. Furthermore, CD4+ T-cell depletion in HIV patients leads to poor granuloma formation, resulting in severe, disseminated primary TB.
