Type 2 Diabetes Mellitus Insulin Resistance Pathway

Analogy: Smart Home Network / Wi-Fi Router

AI-generated illustration for educational purposes

85 views

Visual Dictionary

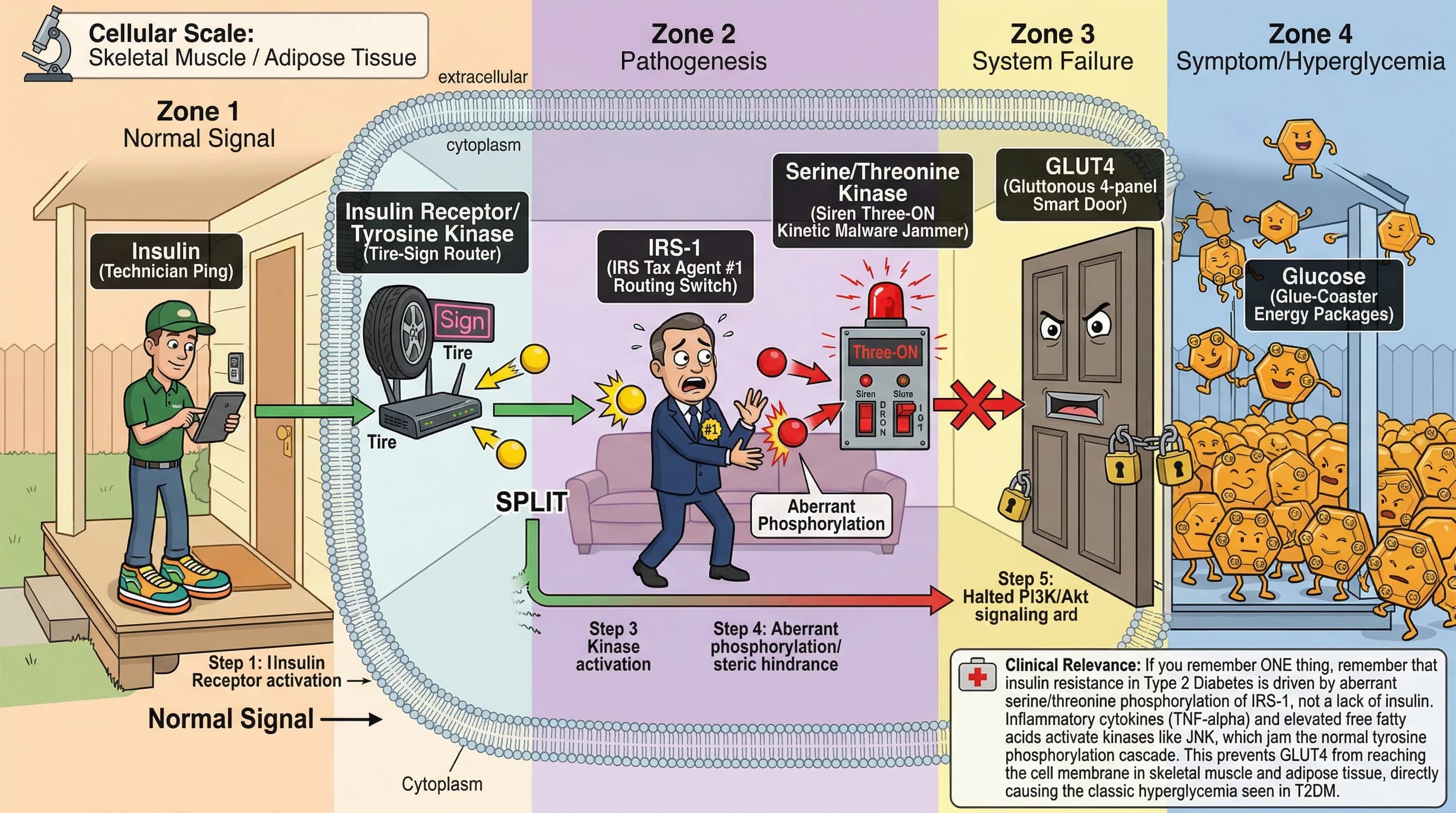

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
In-sole Technician Ping	Insulin	Just as insulin is the external signal requesting cellular entry, the technician's ping is the external request to access the smart home network.
Tire-Sign Kinetic Wi-Fi Router	Insulin Receptor (Tyrosine Kinase)	Just as the receptor spans the membrane to transmit the signal inward via tyrosine phosphorylation, the router sits on the home's exterior wall, receiving the ping and transmitting a kinetic signal inside.
IRS Tax Agent #1 Routing Switch	Insulin Receptor Substrate 1 (IRS-1)	Just as IRS-1 is the central intracellular hub that relays the receptor's signal downstream, the routing switch is the central smart home hub that processes the router's command to unlock doors.
Siren Three-ON Kinetic Malware Jammer	Serine/Threonine Kinase	Just as the kinase aberrantly phosphorylates IRS-1 to block normal signaling, the malware jammer corrupts the routing switch's configuration, preventing it from sending the unlock command.
Gluttonous 4-panel Smart Door	GLUT4	Just as GLUT4 translocates to the membrane to let glucose in, the smart door normally opens upon receiving the network signal to allow packages inside.
Glue-Coaster Energy Packages	Glucose	Just as glucose accumulates outside the cell when GLUT4 fails to translocate, the energy packages pile up on the porch because the smart door remains locked.

The Story

In-sole Technician Ping (Insulin) — Just as insulin is the external signal requesting cellular entry, the technician's ping is the external request to access the smart home network.. Tire-Sign Kinetic Wi-Fi Router (Insulin Receptor (Tyrosine Kinase)) — Just as the receptor spans the membrane to transmit the signal inward via tyrosine phosphorylation, the router sits on the home's exterior wall, receiving the ping and transmitting a kinetic signal inside.. IRS Tax Agent #1 Routing Switch (Insulin Receptor Substrate 1 (IRS-1)) — Just as IRS-1 is the central intracellular hub that relays the receptor's signal downstream, the routing switch is the central smart home hub that processes the router's command to unlock doors.. Siren Three-ON Kinetic Malware Jammer (Serine/Threonine Kinase) — Just as the kinase aberrantly phosphorylates IRS-1 to block normal signaling, the malware jammer corrupts the routing switch's configuration, preventing it from sending the unlock command.. Gluttonous 4-panel Smart Door (GLUT4) — Just as GLUT4 translocates to the membrane to let glucose in, the smart door normally opens upon receiving the network signal to allow packages inside.. Glue-Coaster Energy Packages (Glucose) — Just as glucose accumulates outside the cell when GLUT4 fails to translocate, the energy packages pile up on the porch because the smart door remains locked..

Cheatsheet

# Type 2 Diabetes Mellitus Insulin Resistance Pathway

## Clinical Pearl
If you remember ONE thing, remember that insulin resistance in Type 2 Diabetes is driven by aberrant serine/threonine phosphorylation of IRS-1, not a lack of insulin. Inflammatory cytokines (TNF-alpha) and elevated free fatty acids activate kinases like JNK, which jam the normal tyrosine phosphorylation cascade. This prevents GLUT4 from reaching the cell membrane in skeletal muscle and adipose tissue, directly causing the classic hyperglycemia seen in T2DM.

## Process Steps
undefined. Insulin binds to the extracellular alpha subunits of the Insulin Receptor.
undefined. The Insulin Receptor undergoes conformational change and autophosphorylation of its intracellular Tyrosine Kinase domains.
undefined. Free fatty acids and TNF-alpha activate intracellular Serine/Threonine Kinases (like JNK).
undefined. Serine/Threonine Kinases aberrantly phosphorylate IRS-1 on serine and threonine residues, sterically hindering normal tyrosine phosphorylation.
undefined. Downstream PI3K/Akt signaling is halted, preventing the translocation of GLUT4 storage vesicles to the cell membrane.
undefined. Glucose is unable to enter skeletal muscle and adipose cells, resulting in extracellular accumulation and hyperglycemia.

## Phonetic & Etymology Clues
Insulin: 'In' (inside) + 'sulin' (sole/shoe) = In-sole wearing technician ping,Tyrosine Kinase (Insulin Receptor): 'Tyro' (Tire) + 'sine' (sign) + 'Kinase' (kinetic/moving) = Tire-Sign Kinetic Wi-Fi Router,Insulin Receptor Substrate 1 (IRS-1): 'IRS' (Tax agent) + '1' (badge #1) = IRS Tax Agent #1 Routing Switch,Serine/Threonine Kinase: 'Serine' (Siren) + 'Threonine' (Three-ON switches) + 'Kinase' (kinetic sparks) = Siren Three-ON Kinetic Malware Jammer,GLUT4: 'Glut' (Gluttonous/eating) + '4' (four) = Gluttonous 4-panel Smart Door,Glucose: 'Glu' (Glue) + 'cose' (coaster) = Glue-Coaster Energy Packages

## Entity Summary
- **Insulin**: An anabolic peptide hormone that binds to its extracellular receptor to initiate cellular glucose uptake. → Binds to and activates the Insulin Receptor
- **Insulin Receptor (Tyrosine Kinase)**: A transmembrane receptor that, upon insulin binding, undergoes autophosphorylation and phosphorylates downstream targets on tyrosine residues. → Activated by Insulin, Phosphorylates Insulin Receptor Substrate 1 (IRS-1)
- **Insulin Receptor Substrate 1 (IRS-1)**: An intracellular adaptor protein that transmits the insulin signal to downstream pathways (like PI3K/Akt) when phosphorylated on tyrosine. → Activated by Insulin Receptor (Tyrosine Kinase), Inhibited by Serine/Threonine Kinase, Normally triggers translocation of GLUT4
- **Serine/Threonine Kinase**: Enzymes (e.g., JNK, PKC) activated by inflammatory cytokines and free fatty acids that aberrantly phosphorylate IRS-1, causing insulin resistance. → Phosphorylates and inhibits Insulin Receptor Substrate 1 (IRS-1)
- **GLUT4**: An insulin-regulated glucose transporter that translocates to the cell membrane to allow glucose entry into skeletal muscle and adipose tissue. → Translocation triggered by Insulin Receptor Substrate 1 (IRS-1) signaling, Facilitates intracellular transport of Glucose
- **Glucose**: A simple sugar that serves as the primary energy source for cells, which accumulates in the blood during insulin resistance. → Transported into the cell by GLUT4

Clinical Pearl

If you remember ONE thing, remember that insulin resistance in Type 2 Diabetes is driven by aberrant serine/threonine phosphorylation of IRS-1, not a lack of insulin. Inflammatory cytokines (TNF-alpha) and elevated free fatty acids activate kinases like JNK, which jam the normal tyrosine phosphorylation cascade. This prevents GLUT4 from reaching the cell membrane in skeletal muscle and adipose tissue, directly causing the classic hyperglycemia seen in T2DM.
