Urea Cycle (Ornithine Transcarbamylase Pathway)

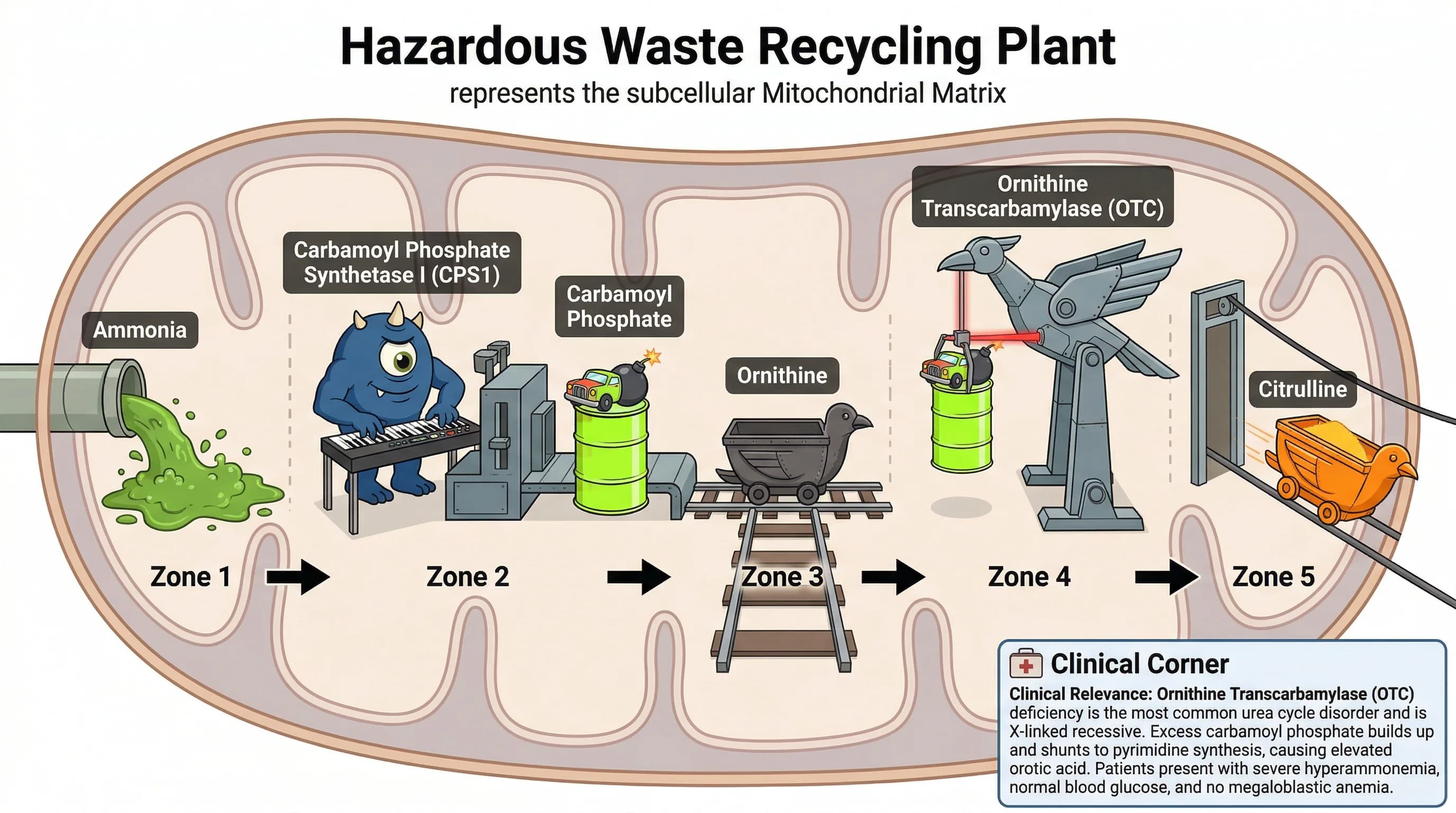

Analogy: Hazardous Waste Recycling Plant

AI-generated illustration for educational purposes

74 views

Visual Dictionary

Each visual element in the image maps to a specific medical concept.

Visual Element	Medical Concept	Why This Mapping
Raw, bubbling toxic sludge	Ammonia	Just as ammonia is a highly toxic, uncontained metabolic waste product, the raw sludge is a dangerous, uncontained hazard that must be processed immediately.
Cyclops playing a synthesizer to pack a car-bomb in an oil drum with glowing phosphor	Carbamoyl Phosphate Synthetase I (CPS1)	CPS1 uses cellular energy (ATP) to forcefully package toxic ammonia into a reactive intermediate, just as this machine uses power to compress raw sludge into a highly explosive, contained barrel.
Glowing phosphor car-bomb in an oil drum	Carbamoyl Phosphate	Carbamoyl phosphate is a high-energy, reactive intermediate waiting to be transferred, perfectly mirrored by a volatile, glowing explosive barrel waiting to be loaded.
Iron bird-shaped empty cart	Ornithine	Ornithine is a recycled carrier molecule that continuously returns to the mitochondria empty, just like an empty iron cart returning to the loading dock to pick up more waste.
Bird-shaped transport crane using a laser	Ornithine Transcarbamylase (OTC)	OTC facilitates the physical transfer of the carbamoyl group onto ornithine, functioning exactly like a loading crane that picks up the explosive barrel and secures it onto the empty cart.
Citrus-colored cart rolling down a zipline	Citrulline	Citrulline is the loaded carrier that safely exits the mitochondria, represented by the now-full, brightly colored cart zipping out of the hazardous waste facility.

The Story

Raw, bubbling toxic sludge (Ammonia) — Just as ammonia is a highly toxic, uncontained metabolic waste product, the raw sludge is a dangerous, uncontained hazard that must be processed immediately.. Cyclops playing a synthesizer to pack a car-bomb in an oil drum with glowing phosphor (Carbamoyl Phosphate Synthetase I (CPS1)) — CPS1 uses cellular energy (ATP) to forcefully package toxic ammonia into a reactive intermediate, just as this machine uses power to compress raw sludge into a highly explosive, contained barrel.. Glowing phosphor car-bomb in an oil drum (Carbamoyl Phosphate) — Carbamoyl phosphate is a high-energy, reactive intermediate waiting to be transferred, perfectly mirrored by a volatile, glowing explosive barrel waiting to be loaded.. Iron bird-shaped empty cart (Ornithine) — Ornithine is a recycled carrier molecule that continuously returns to the mitochondria empty, just like an empty iron cart returning to the loading dock to pick up more waste.. Bird-shaped transport crane using a laser (Ornithine Transcarbamylase (OTC)) — OTC facilitates the physical transfer of the carbamoyl group onto ornithine, functioning exactly like a loading crane that picks up the explosive barrel and secures it onto the empty cart.. Citrus-colored cart rolling down a zipline (Citrulline) — Citrulline is the loaded carrier that safely exits the mitochondria, represented by the now-full, brightly colored cart zipping out of the hazardous waste facility..

Cheatsheet

# Urea Cycle (Ornithine Transcarbamylase Pathway)

## Clinical Pearl
If you remember ONE thing, remember that Ornithine Transcarbamylase (OTC) deficiency is the most common urea cycle disorder and is X-linked recessive (all other urea cycle enzyme deficiencies are autosomal recessive). Because OTC is blocked, excess carbamoyl phosphate builds up and shunts into the pyrimidine synthesis pathway, leading to elevated orotic acid in the blood and urine. Patients present with severe hyperammonemia (lethargy, vomiting, cerebral edema) but have normal blood glucose and no megaloblastic anemia, distinguishing it from orotic aciduria.

## Process Steps
undefined. Raw, bubbling toxic sludge (Ammonia) flows into the hazardous waste facility.
undefined. The Cyclops synthesizer machine (CPS1) consumes heavy power to compress the sludge into a glowing phosphor car-bomb oil drum (Carbamoyl Phosphate).
undefined. An empty iron bird-shaped cart (Ornithine) arrives at the central loading dock.
undefined. The bird-shaped transport crane with a laser (OTC) carefully lifts the glowing car-bomb drum and locks it onto the iron bird cart.
undefined. The newly loaded cart transforms into a citrus-colored cart (Citrulline) and rolls down a zipline to exit the facility.

## Phonetic & Etymology Clues
Carbamoyl Phosphate Synthetase I: Carbamoyl (car + bomb + oil drum) + Phosphate (glowing phosphor) + Synthetase (synthesizer keyboard) + I (cyclops eye) = Cyclops playing a synthesizer to pack a car-bomb in an oil drum with glowing phosphor,Ornithine Transcarbamylase: Ornithine (bird) + Trans (transport crane) + Carbamylase (car + bomb + laser) = Bird-shaped transport crane using a laser to move the car-bomb,Citrulline: Citru (citrus/orange) + line (zipline) = Citrus-colored cart rolling down a zipline,Ornithine: Ornith (bird) + ine (iron) = Iron bird-shaped cart

## Entity Summary
- **Ammonia**: A highly toxic byproduct of amino acid catabolism that must be safely converted into urea for excretion. → Carbamoyl Phosphate Synthetase I (CPS1)
- **Carbamoyl Phosphate Synthetase I (CPS1)**: The rate-limiting mitochondrial enzyme that catalyzes the condensation of ammonia and bicarbonate into carbamoyl phosphate, requiring 2 ATP. → Ammonia, Carbamoyl Phosphate
- **Carbamoyl Phosphate**: A high-energy, reactive intermediate that donates its carbamoyl group to ornithine. → Carbamoyl Phosphate Synthetase I (CPS1), Ornithine Transcarbamylase (OTC)
- **Ornithine**: A non-proteinogenic amino acid that acts as a carrier molecule, entering the mitochondria to accept a carbamoyl group. → Ornithine Transcarbamylase (OTC), Citrulline
- **Ornithine Transcarbamylase (OTC)**: A mitochondrial enzyme that catalyzes the transfer of the carbamoyl group from carbamoyl phosphate to ornithine, forming citrulline. → Carbamoyl Phosphate, Ornithine, Citrulline
- **Citrulline**: The product of the OTC reaction, which subsequently exits the mitochondria into the cytosol to continue the urea cycle. → Ornithine Transcarbamylase (OTC), Ornithine

Clinical Pearl

If you remember ONE thing, remember that Ornithine Transcarbamylase (OTC) deficiency is the most common urea cycle disorder and is X-linked recessive (all other urea cycle enzyme deficiencies are autosomal recessive). Because OTC is blocked, excess carbamoyl phosphate builds up and shunts into the pyrimidine synthesis pathway, leading to elevated orotic acid in the blood and urine. Patients present with severe hyperammonemia (lethargy, vomiting, cerebral edema) but have normal blood glucose and no megaloblastic anemia, distinguishing it from orotic aciduria.
